Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Aiways U5. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Aiways U5 can be charged, but some modes of charging might not be widely available in certain countries.
Type 2 (Mennekes - IEC 62196)
Charging Point
Max. Power
Power
Time
Rate
Wall Plug (2.3 kW)
230V / 1x10A
2.3 kW
30h45m
10 km/h
1-phase 16A (3.7 kW)
230V / 1x16A
3.7 kW
19h15m
16 km/h
1-phase 32A (7.4 kW)
230V / 1x32A
7.4 kW
9h45m
32 km/h
3-phase 16A (11 kW)
400V / 3x16A
11 kW
6h30m
48 km/h
3-phase 32A (22 kW)
400V / 3x16A
11 kW †
6h30m
48 km/h
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Aiways U5.
Max. Power: maximum power provided by charge point
Avg. Power: average power provided by charge point over a session from 10% to 80%
Time: time needed to charge from 10% to 80%
Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging Point
Max. Power
Avg. Power
Time
Rate
CCS (50 kW DC)
50 kW
50 kW
53 min
250 km/h
CCS (150 kW DC)
92 kW †
78 kW †
34 min
380 km/h
Charge Curve
Data made available by Fastned
This vehicle supports Autocharge
This vehicle does not support Plug & Charge
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Aiways Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Aiways U5. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
Max. Power: maximum charge power during charging session
Charge From: battery percentage (% SoC) where charging session is started
Charge To: battery percentage (% SoC) where charging session is ended
Time: time needed for charging session
Aiways Claimed Specifications
Max. Power
Charge From
Charge To
Time
90 kW
20 %
80 %
35 min
Dimensions and Weight
Length
4680 mm
Width
1865 mm
Width with mirrors
No Data
Height
1700 mm
Wheelbase
2800 mm
Weight Unladen (EU)
1795 kg
Gross Vehicle Weight (GVWR)
2135 kg
Max. Payload
415 kg
Cargo Volume
496 L
Cargo Volume Max
1619 L
Cargo Volume Frunk
0 L
Roof Load
75 kg
Tow Hitch Possible
No Data
Towing Weight Unbraked
No Data
Towing Weight Braked
No Data
Vertical Load Max
No Data
About this Vehicle

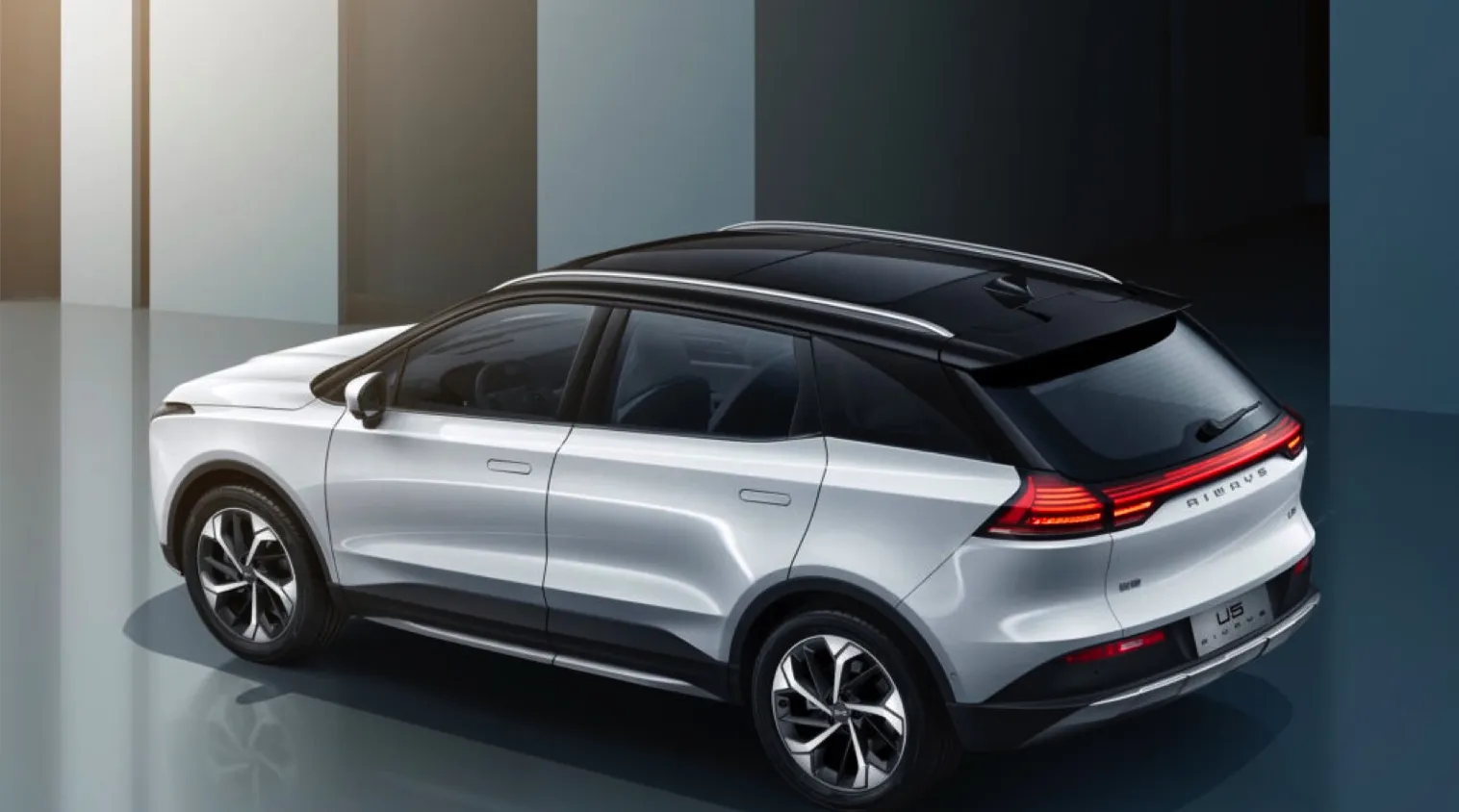

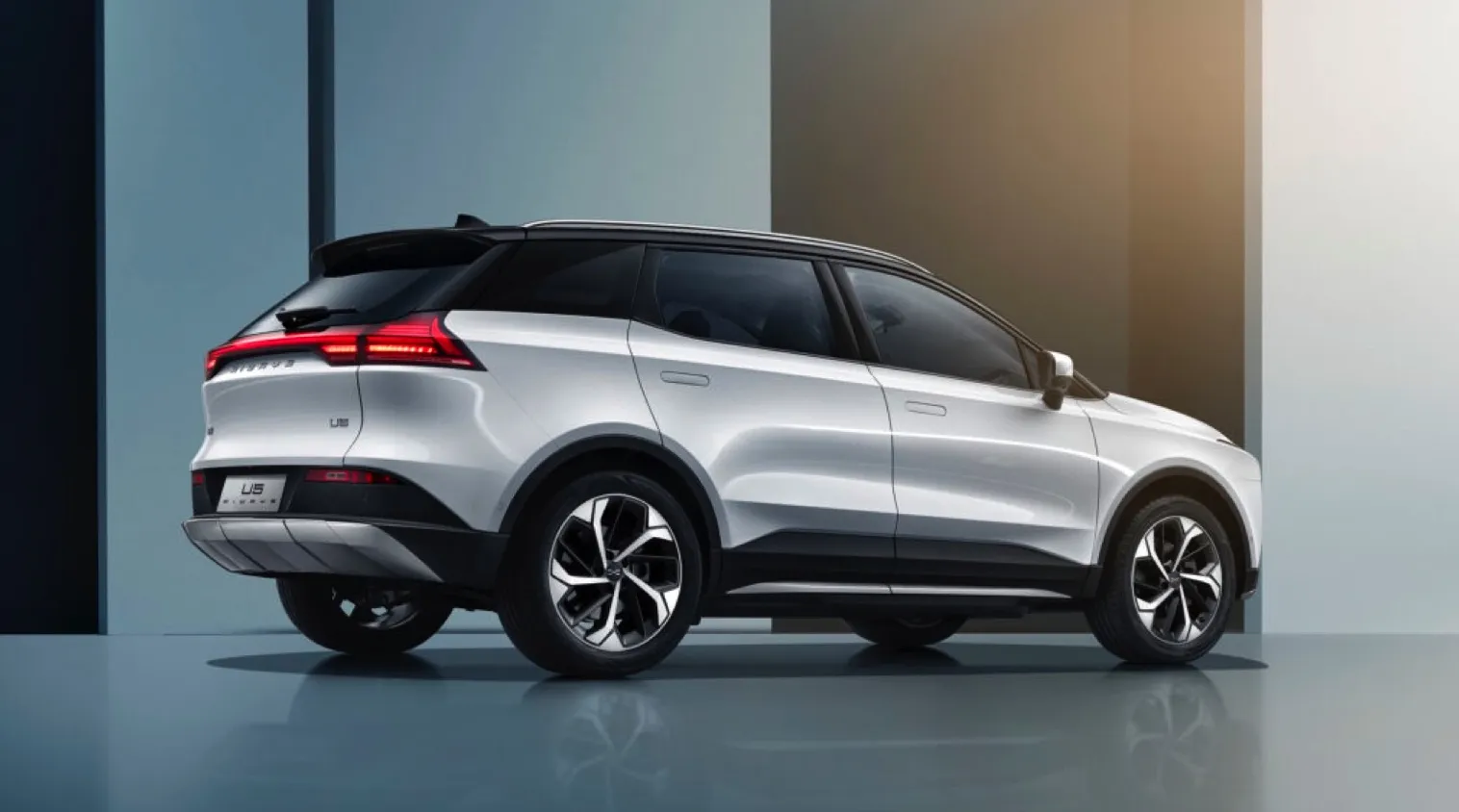

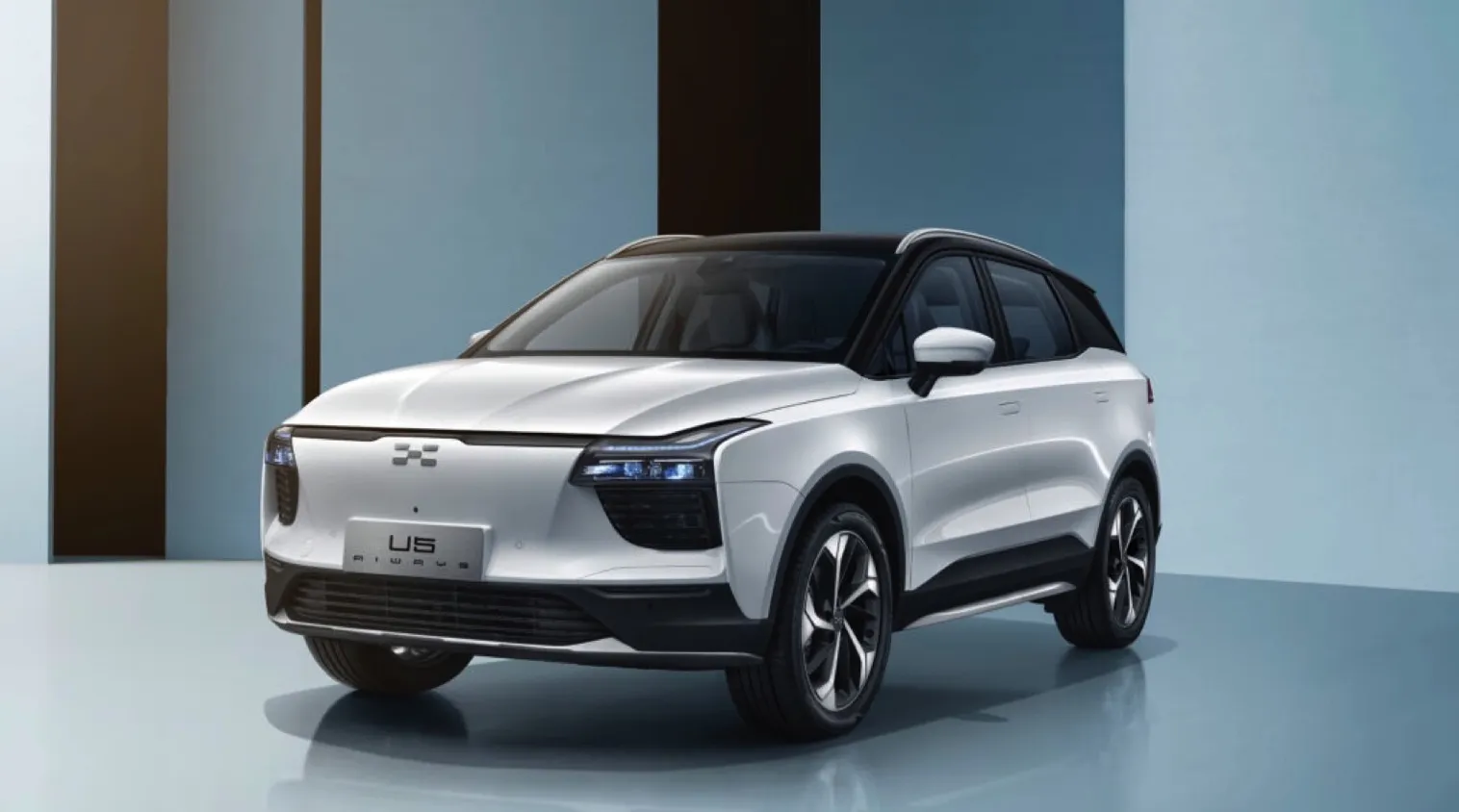

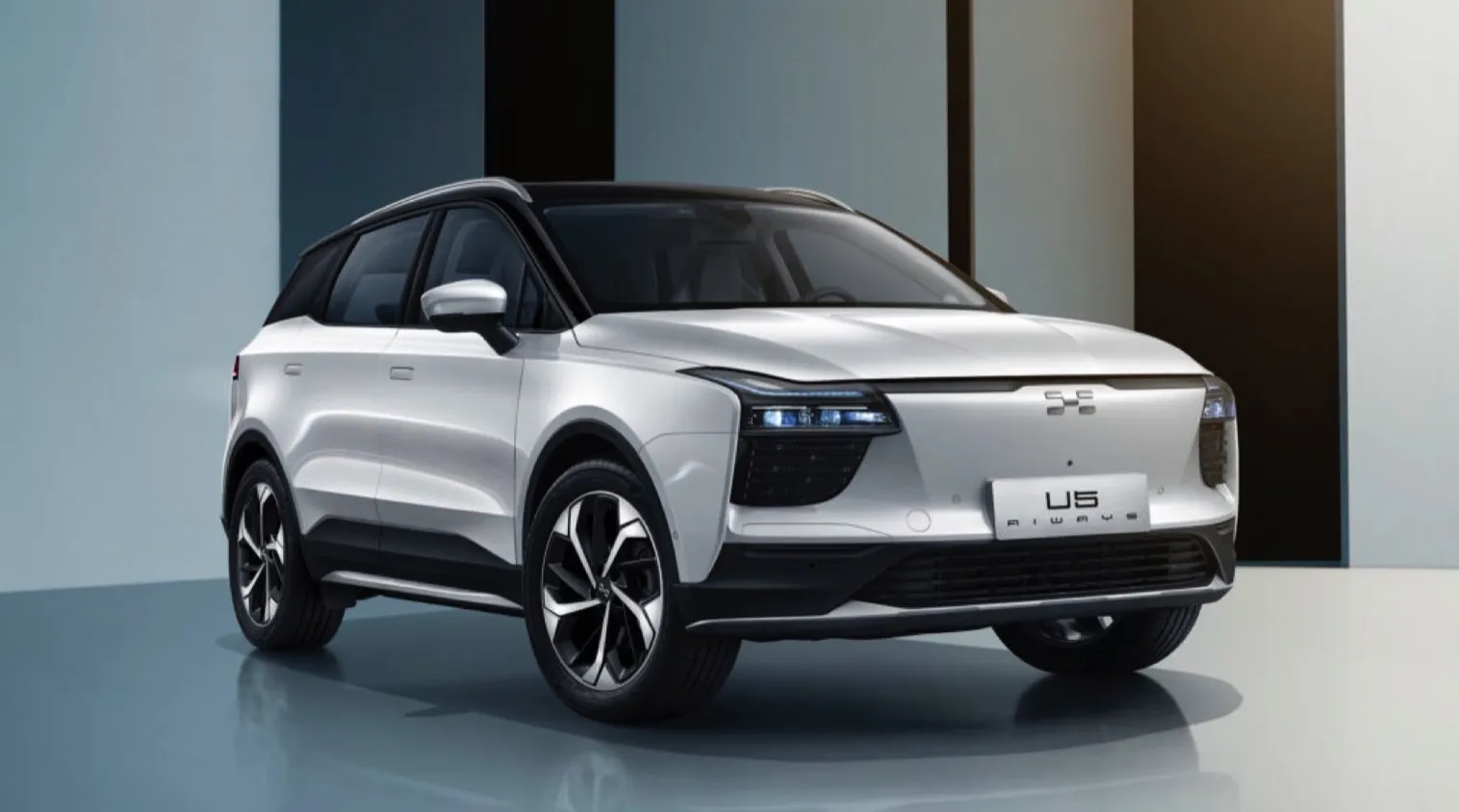

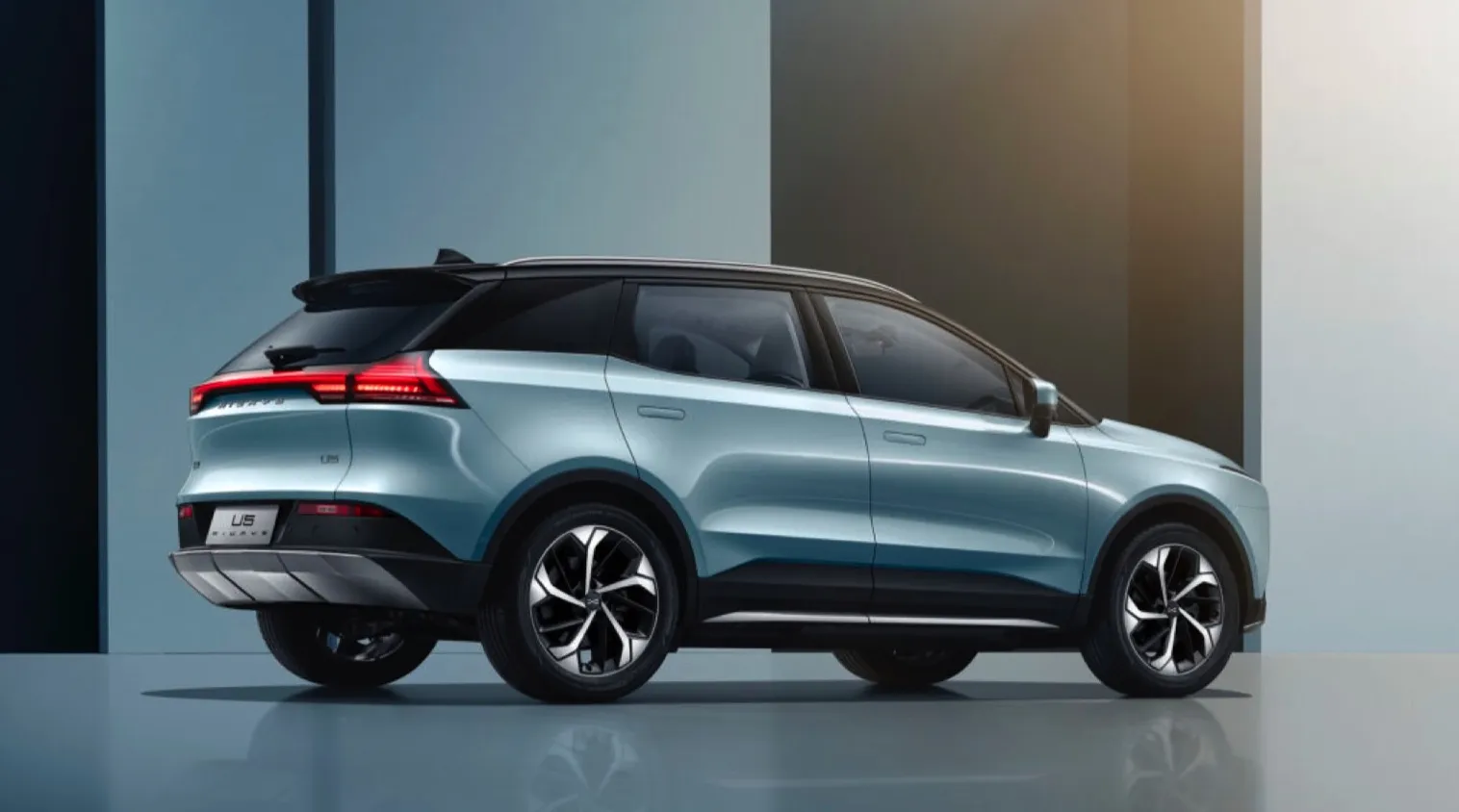

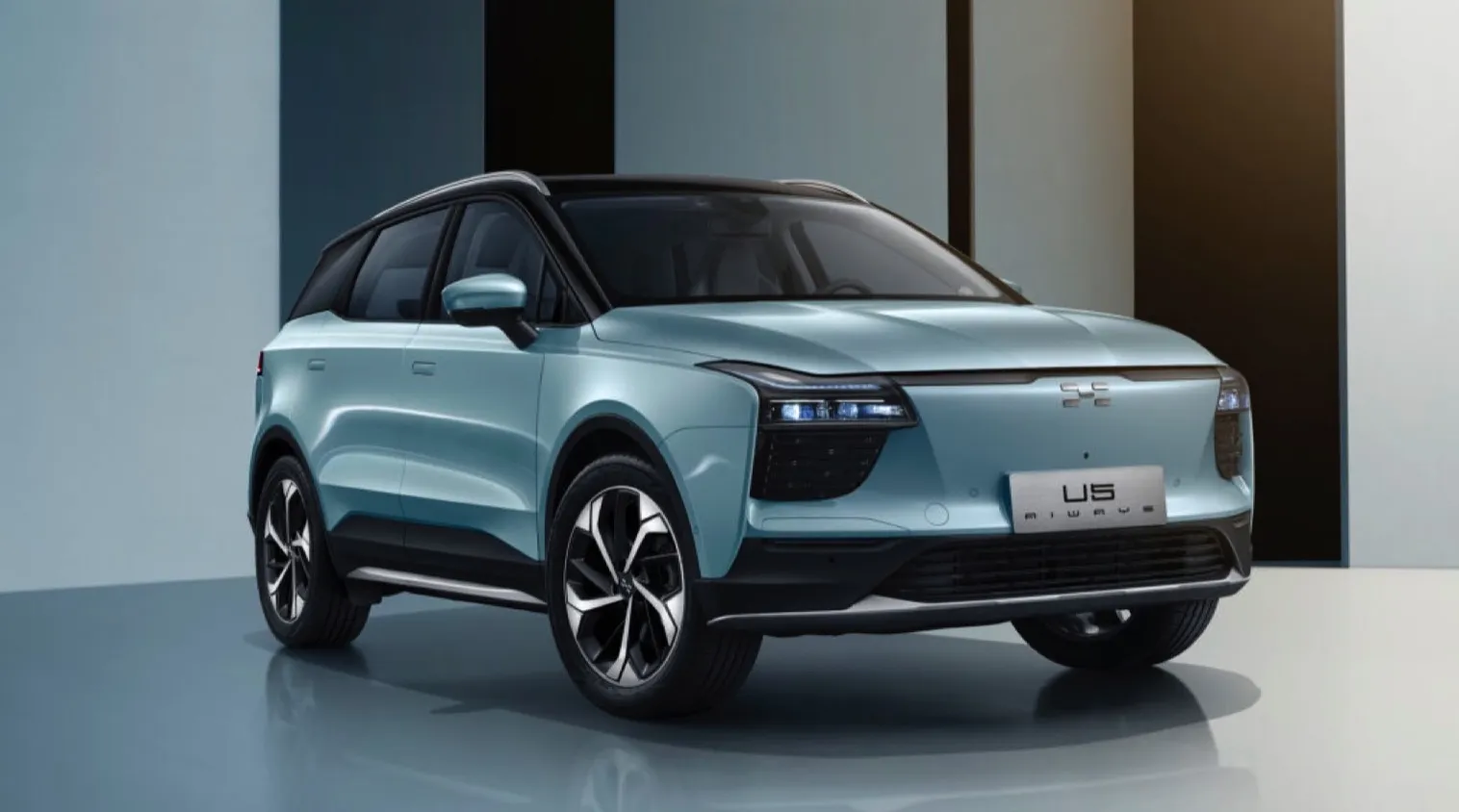

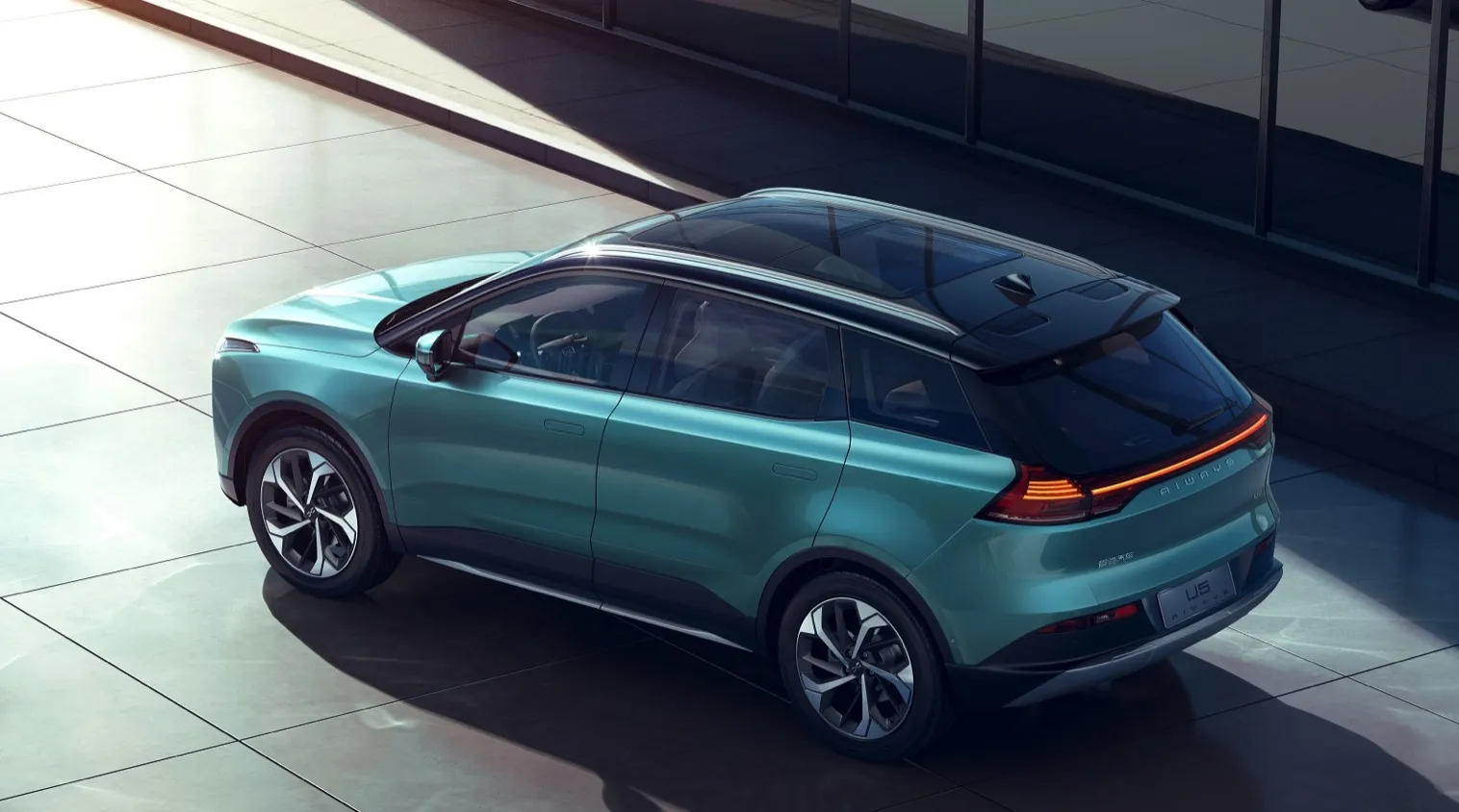

Aiways U5 Overview
The Aiways U5 positions itself as a mainstream electric SUV from Chinese manufacturer Aiways, offering premium features at accessible pricing for families and urban commuters seeking a practical EV. Launched in 2019, this 5-door, 5-seat Aiways electric SUV targets the compact SUV segment with its spacious 432-1555 liter trunk, emphasizing everyday usability and long-distance capability. Built on Aiways’ dedicated EV platform, the U5 stands out with its ternary lithium battery technology, front-wheel-drive efficiency, and Guinness World Record for the longest journey by an EV prototype, underscoring its reliability in the EV landscape.
Key distinguishing features include a permanent-magnet synchronous electric motor, advanced McPherson front and multi-link rear suspension for composed handling, and a design philosophy focused on aerodynamics and interior roominess (4680 x 1865 x 1700 mm dimensions). In the competitive electric vehicle market, the Aiways U5 matters as an underdog alternative to pricier European rivals, delivering solid EV specs like 410 km WLTP range and family-friendly practicality. For those eyeing a Aiways U5 review, it excels in value, making it ideal for budget-conscious buyers upgrading to electric without sacrificing space or tech.
Aiways U5 Performance and Driving Experience
The Aiways U5 delivers peppy acceleration with its 204 hp electric motor and 310 Nm torque, sprinting from 0-60 mph in 7.1 seconds via instant power delivery typical of EVs. Front-wheel drive paired with a single-speed automatic transmission ensures smooth, responsive dynamics, while independent suspension provides stable handling on highways and twisty roads. Real-world impressions highlight its composed ride, electric steering precision, and minimal body roll, making it enjoyable for daily commutes despite its 1720 kg curb weight.
Specification
Value
0-60 mph (0-100 km/h)
7.1 sec (7.5 sec)
Top Speed
93 mph / 150 km/h
Power Output
204 hp / 150 kW
Torque
229 lb-ft / 310 Nm
Aiways U5 Range and Battery Specifications
The Aiways U5 boasts a WLTP range of 410 km (255 miles), with real-world estimates around 300-350 km depending on conditions, supported by its 63 kWh gross (60 kWh usable) ternary lithium battery. Energy efficiency stands at 16.6 kWh/100 km WLTP, dropping to 13.8 kWh/100 km in ideal scenarios, making it competitive for Aiways U5 WLTP range seekers. Factors like cold weather, aggressive driving, or hilly terrain can reduce Aiways U5 real-world range by 20-30%, but highway efficiency shines at 3.7 mi/kWh.
Aiways U5 battery specs include a robust pack integrated for safety and longevity, paired with regenerative braking to extend trips.
Range Metric
Value
WLTP Range
255 miles / 410 km
EPA Range
N/A
Real-World Range
186-300 miles / 300-480 km
Battery Capacity
63 kWh (60 kWh usable)

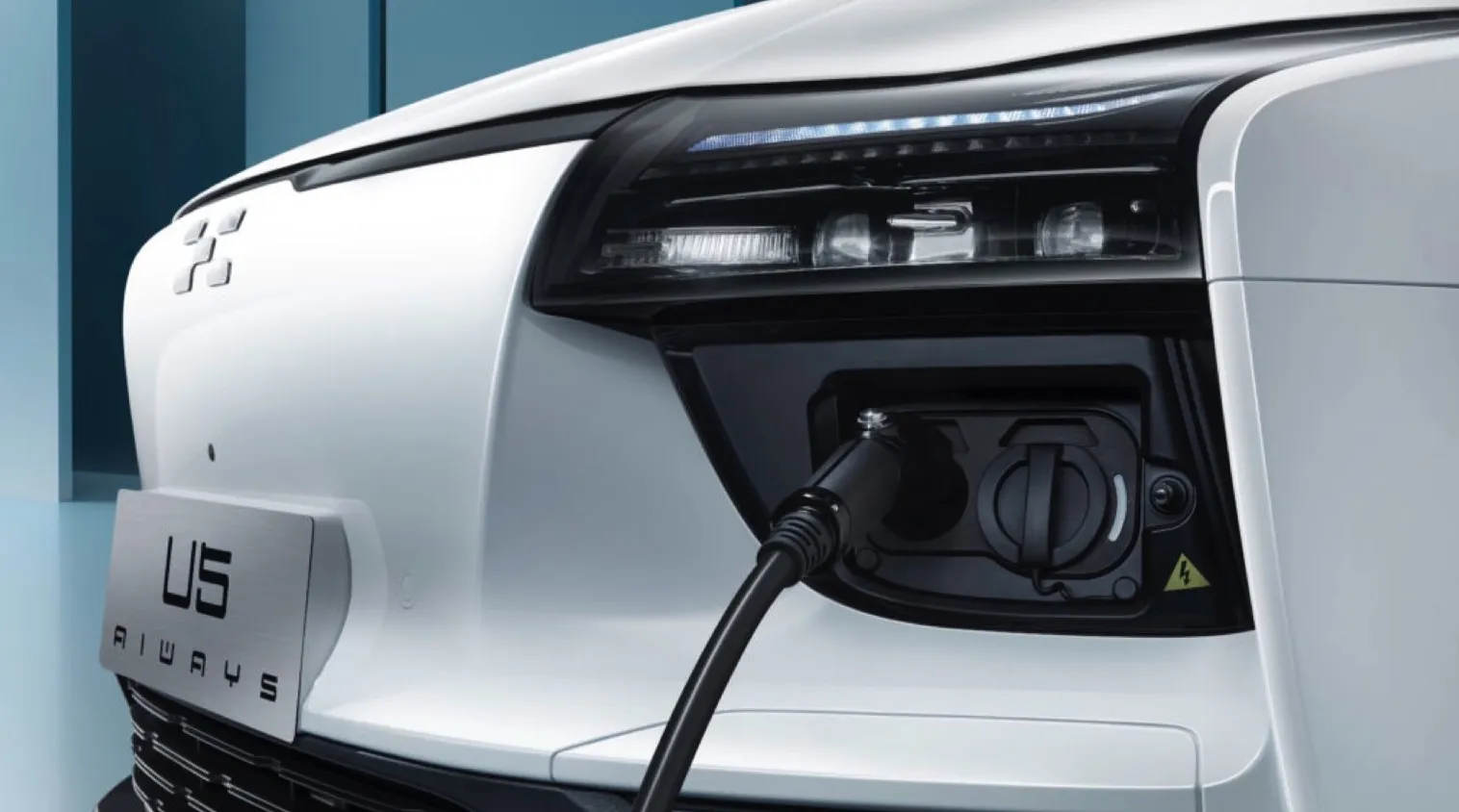

Aiways U5 Charging Times and Options
Home charging for the Aiways U5 is straightforward with Level 1 at ~1.4 kW or Level 2 up to 6.6-11 kW, fully replenishing in 8-10 hours from empty. DC fast charging peaks at up to 90 kW, achieving 30-80% in 27-30 minutes, compatible with major networks for road trips. Practical scenarios favor overnight Level 2 for daily use, while CCS ports enable quick top-ups on long drives.
Charging Method
Time
Speed
Level 1 (120V)
40+ hours
~1.4 kW
Level 2 (240V/7kW)
9-10 hours
~6.6 kW
Level 2 (240V/11kW)
6-7 hours
~11 kW
DC Fast Charge (10-80%)
27-30 min
up to 90 kW
Aiways U5 vs Competitors
In the Aiways U5 vs competitors matchup, it undercuts the Hyundai Ioniq 5 (similar 300-mile range but pricier) with better value and space, while trailing the Tesla Model Y in charging speed and software but matching family hauling at lower cost. Against the Kia EV6, the Aiways U5 comparison reveals comparable EV specs and FWD efficiency, though it lacks AWD options—ideal for budget buyers prioritizing trunk volume over outright performance.
Frequently Asked Questions
The Aiways U5 achieves 300-480 km (186-300 miles) in real-world conditions, varying by weather, speed, and load; expect 350 km on highways with moderate use from its 63 kWh battery.
Level 2 (11 kW) takes 6-7 hours for a full charge, while DC fast charging (90 kW) delivers 10-80% in 27-30 minutes, suiting daily and long-trip needs.
The Aiways U5 is front-wheel drive (FWD) only, with one electric motor powering the front wheels for efficient, responsive traction in most conditions.
Aiways’ MAS (Modular Advanced Structure) uses lightweight composites for enhanced safety, rigidity, and a lower center of gravity, improving handling and crash protection in the U5.
The Aiways U5 offers similar 410 km WLTP range and more trunk space at a lower price than the Ioniq 5, but lags in fast-charging speed and brand cachet.
Yes, the Aiways U5 shines with spaciousness, 204 hp pep, and value-packed EV specs, though limited availability and no AWD may deter some; pros include range and efficiency, cons are slower DC charging.> The Aiways U5 electric SUV from Aiways packs a 63 kWh battery for 410 km WLTP range, 204 hp power, and family-friendly space in a mainstream package. It excels in value against Tesla Model Y and Hyundai Ioniq 5 rivals, with quick DC charging and proven long-distance prowess for everyday EV drivers.
