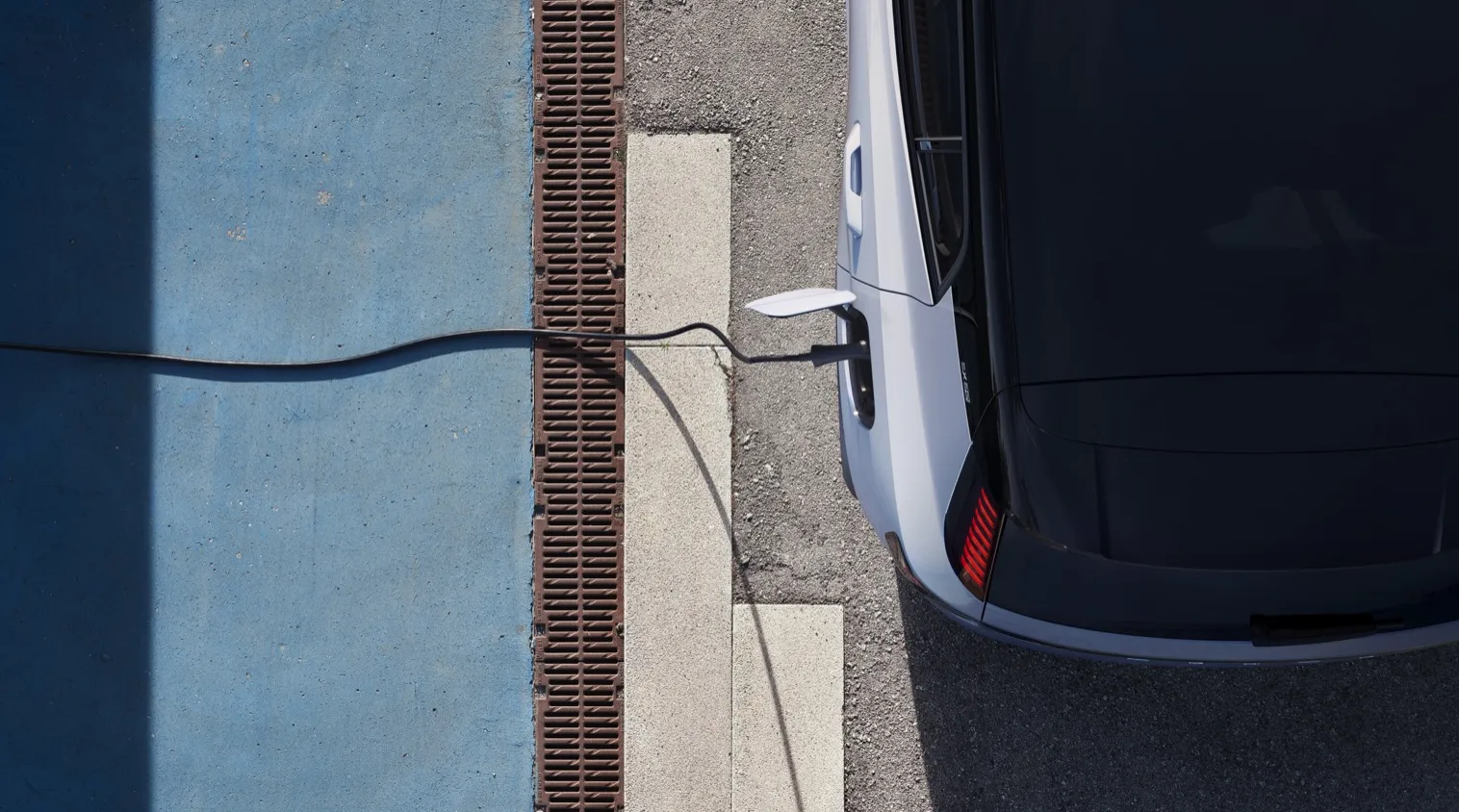

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Volvo EX30 Single Motor. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Volvo EX30 Single Motor can be charged, but some modes of charging might not be widely available in certain countries.
Type 2 (Mennekes - IEC 62196)
Charging Point
Max. Power
Power
Time
Rate
Wall Plug (2.3 kW)
230V / 1x10A
2.3 kW
25h15m
11 km/h
1-phase 16A (3.7 kW)
230V / 1x16A
3.7 kW
15h45m
17 km/h
1-phase 32A (7.4 kW)
230V / 1x32A
7.4 kW
8 hours
34 km/h
3-phase 16A (11 kW)
400V / 3x16A
11 kW
5h15m
52 km/h
3-phase 32A (22 kW)
400V / 3x16A
11 kW †
5h15m
52 km/h
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Volvo EX30 Single Motor.
Max. Power: maximum power provided by charge point
Avg. Power: average power provided by charge point over a session from 10% to 80%
Time: time needed to charge from 10% to 80%
Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging Point
Max. Power
Avg. Power
Time
Rate
CCS (50 kW DC)
50 kW
40 kW †
54 min
210 km/h
CCS (100 kW DC)
100 kW
65 kW †
33 min
350 km/h
CCS (150 kW DC)
134 kW †
80 kW †
27 min
420 km/h
This vehicle does not support Plug & Charge
† = Limited by charging capabilities of vehicle
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Volvo Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Volvo EX30 Single Motor. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
Max. Power: maximum charge power during charging session
Charge From: battery percentage (% SoC) where charging session is started
Charge To: battery percentage (% SoC) where charging session is ended
Time: time needed for charging session
Volvo Claimed Specifications
Max. Power
Charge From
Charge To
Time
134 kW
10 %
80 %
26 min
Dimensions and Weight
Length
4233 mm
Width
1837 mm
Width with mirrors
2032 mm
Height
1549 mm
Wheelbase
2650 mm
Weight Unladen (EU)
1840 kg
Gross Vehicle Weight (GVWR)
2210 kg
Max. Payload
445 kg

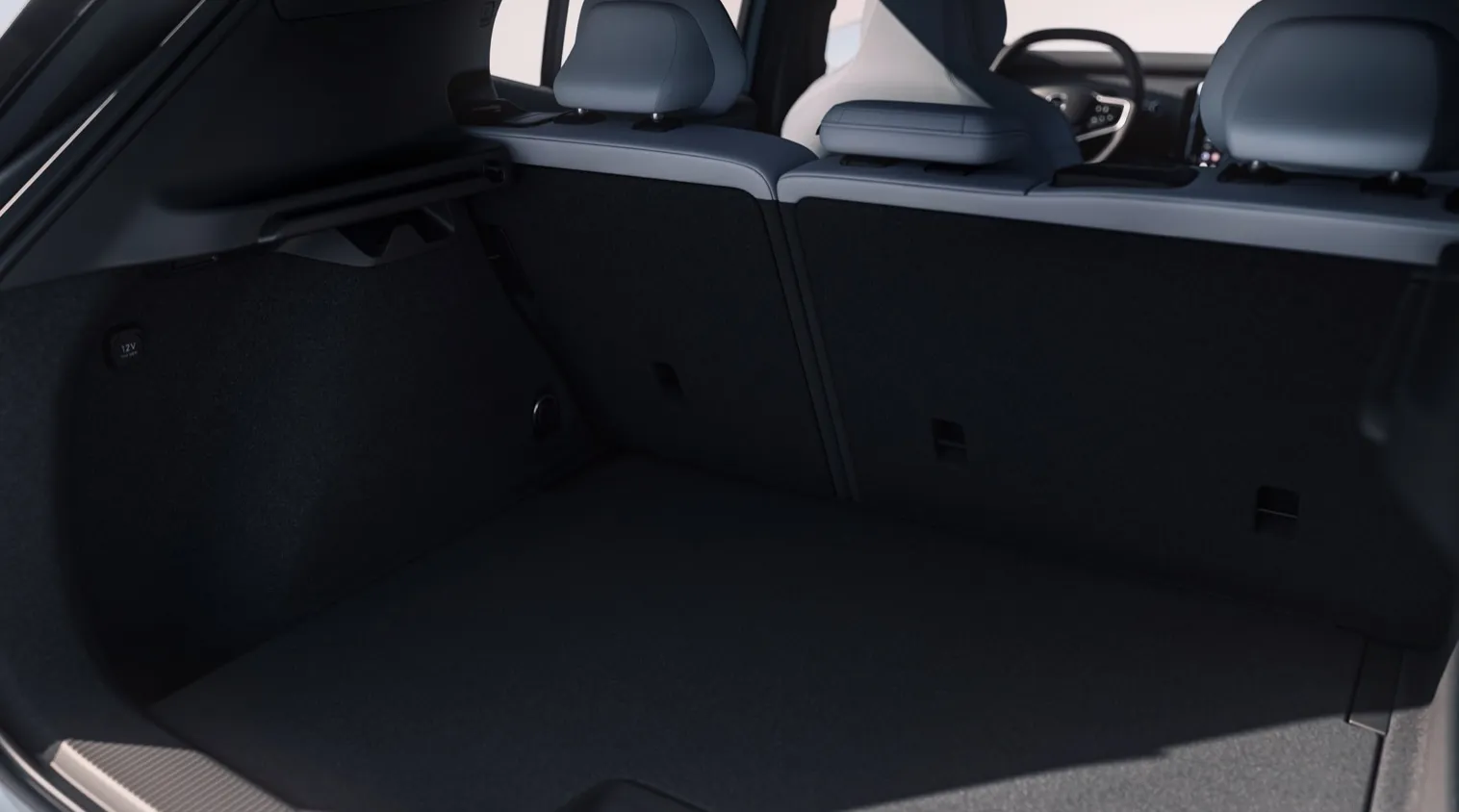

Cargo Volume
318 L
Cargo Volume Max
904 L
Cargo Volume Frunk
7 L
Roof Load
75 kg
Tow Hitch Possible
Yes
Towing Weight Unbraked
750 kg
Towing Weight Braked
1000 kg
Vertical Load Max
100 kg
About this Vehicle

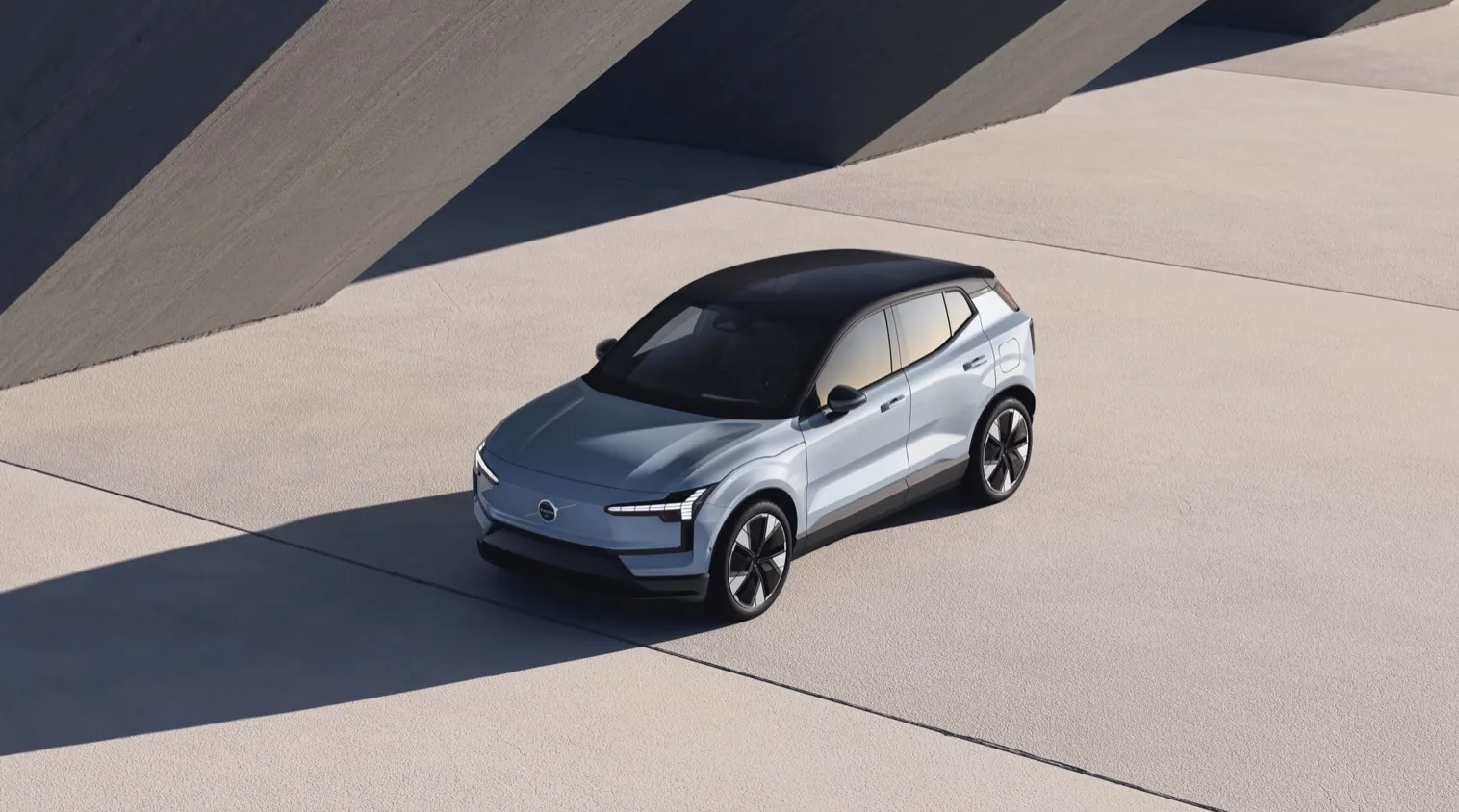

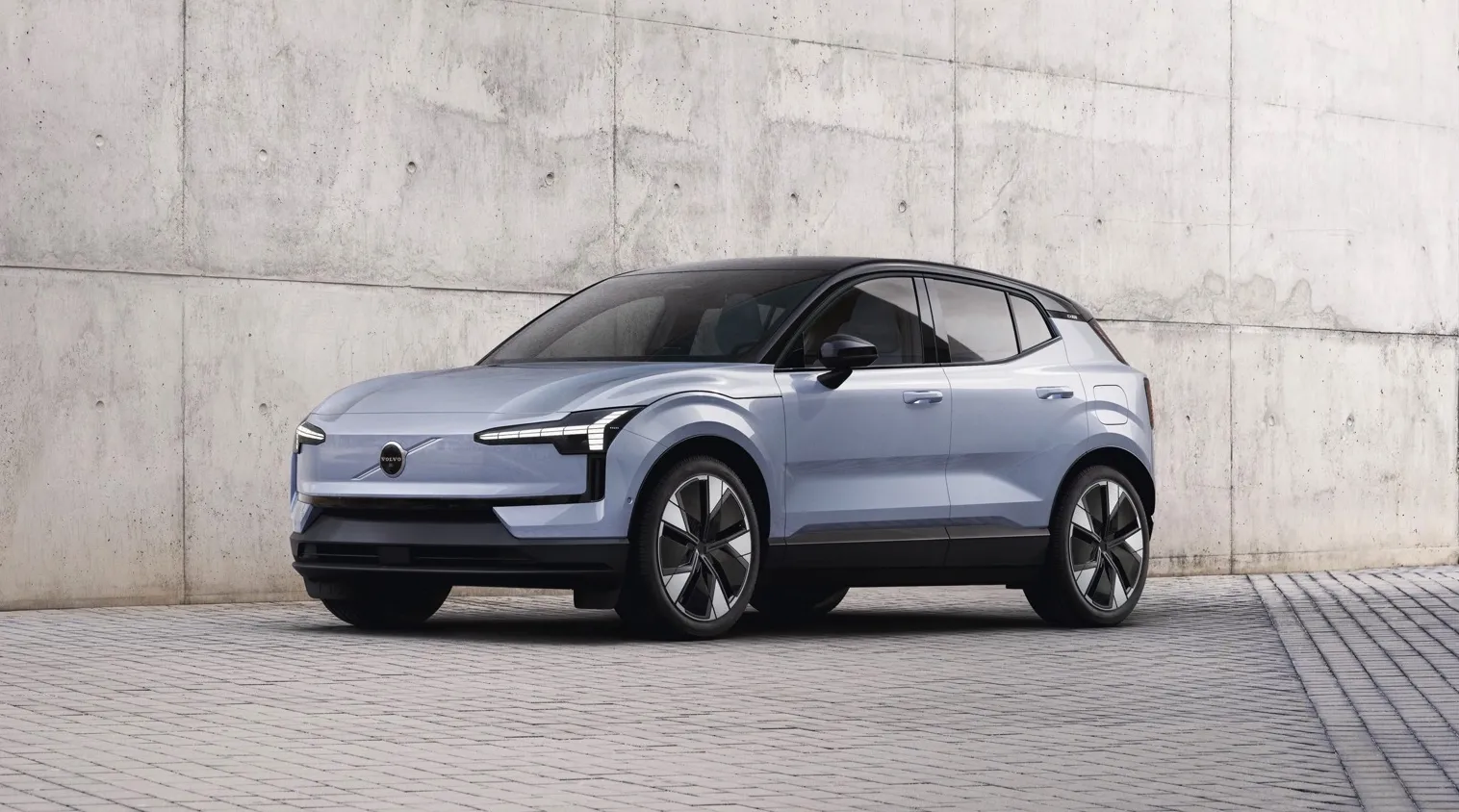

Volvo EX30 Single Motor Overview

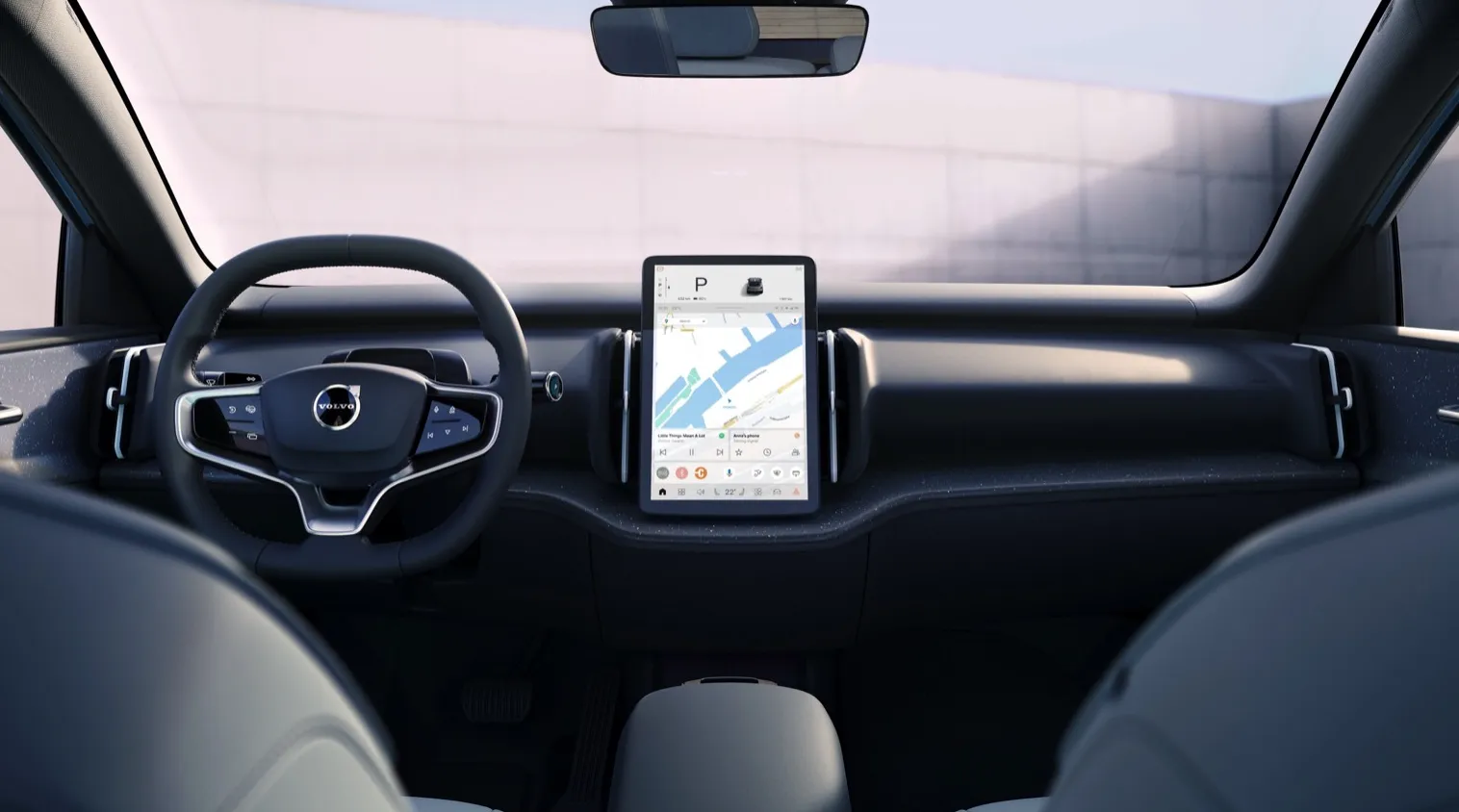

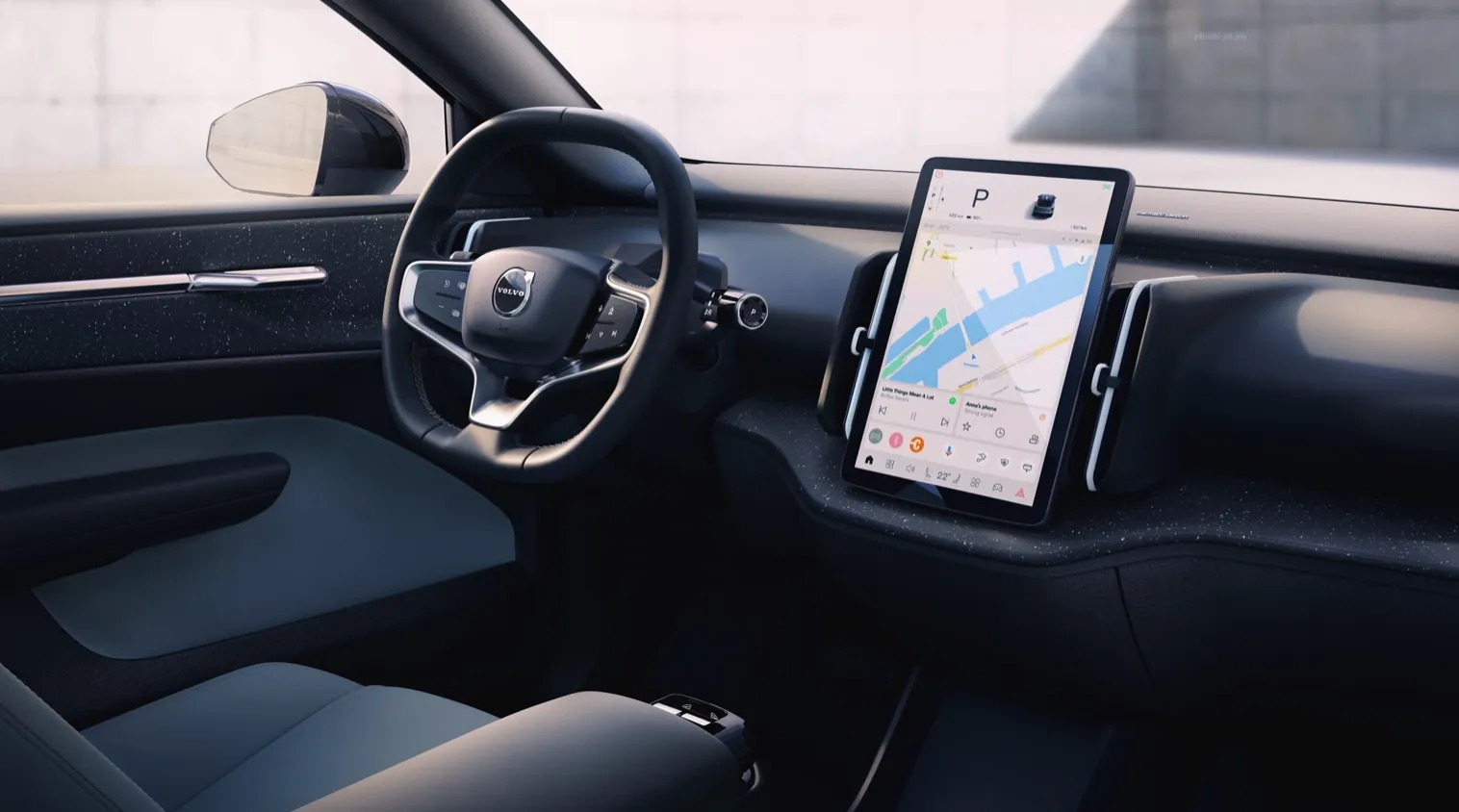

The Volvo EX30 Single Motor positions itself as a premium entry-level electric SUV, blending Scandinavian design with accessible pricing starting around $40,000. This rear-wheel-drive model targets urban commuters, young professionals, and small families seeking a compact Volvo electric SUV without compromising on luxury or safety. Built on Volvo’s sustainable EMA platform, it emphasizes efficiency, minimalist aesthetics, and advanced tech like Google built in for seamless connectivity.
Key distinguishing features include a 69 kWh battery, a responsive single electric motor, and a thoughtful interior with sustainable materials. In the competitive EV landscape, the Volvo EX30 Single Motor stands out for its impressive EPA range of 261 miles, making it a practical choice amid rising demand for affordable electric vehicle range leaders. This EX30 review highlights its role as Volvo’s bold step into subcompact EVs, prioritizing real-world usability over outright performance.
Volvo EX30 Single Motor Performance and Driving Experience
The Volvo EX30 Single Motor delivers spirited acceleration with its 268 hp electric motor and 253 lb-ft of torque, hitting 0-60 mph in 5.1 seconds for quick merges and overtakes. Rear-wheel drive provides balanced handling with a low center of gravity, agile dynamics, and a tight 35.1 ft turning circle ideal for city driving. Real-world impressions praise its immediate power delivery, precise steering, and composed ride over varied terrain, though it’s tuned more for comfort than track thrills.
Specification
Value
0-60 mph (0-100 km/h)
5.1 sec
Top Speed
112 mph / 180 km/h
Power Output
268 hp / 200 kW
Torque
253 lb-ft / 343 Nm
Volvo EX30 Single Motor Range and Battery Specifications
The Volvo EX30 Single Motor boasts an EPA range of 261 miles, with WLTP figures reaching up to 334 miles in optimal conditions, though real-world range typically falls to 230-260 miles depending on weather, speed, and load. Its 69 kWh battery (64 kWh usable) uses advanced lithium-ion chemistry for excellent efficiency at 29 kWh/100 miles or 116 MPGe combined. Cold weather can reduce range by 20-30%, while highway driving at 75 mph yields around 100 MPGe.
Volvo EX30 WLTP range and battery specs shine in efficiency, aided by aero-optimized wheels and regenerative braking. Factors like aggressive acceleration or hilly terrain impact results, but it’s competitive for daily commutes.
Range Metric
Value
WLTP Range
334 miles / 538 km
EPA Range
261 miles / 420 km
Real-World Range
230-260 miles / 370-418 km
Battery Capacity
69 kWh (64 kWh usable)
Volvo EX30 Single Motor Charging Times and Options
Home charging for the Volvo EX30 Single Motor is straightforward with Level 2 at 240V, taking about 8 hours for a full charge, while Level 1 suits overnight top-ups. It supports DC fast charging up to 153 kW via SAE Combo port, achieving 10-80% in 28 minutes for quick road trips. Compatibility with Electrify America and other CCS networks enhances versatility.
Practical scenarios include daily Level 2 for commuters or DC stops, adding 100+ miles in 15 minutes, minimizing downtime.
Charging Method
Time
Speed
Level 1 (120V)
24 hours
~1.4 kW
Level 2 (240V/7kW)
10 hours
~7 kW
Level 2 (240V/11kW)
8 hours
~11 kW
DC Fast Charge (10-80%)
28 min
up to 153 kW
Volvo EX30 Single Motor vs Competitors
In the Volvo EX30 Single Motor vs Tesla Model Y matchup, the EX30 offers superior build quality and safety at a lower price, though the Model Y edges in range and Supercharger access. Compared to the Hyundai Ioniq 5, the EX30 provides a more premium interior and better efficiency (127 MPGe city), but the Ioniq 5 wins on faster 350 kW charging. Against the BMW i4, it undercuts on cost while matching agile handling in a compact SUV package. Overall, the EX30 comparison favors value-driven buyers.
Frequently Asked Questions
The Volvo EX30 Single Motor delivers 230-260 miles in real-world range, influenced by cold weather (down to 200 miles) or highway speeds, compared to its 261-mile EPA estimate.
Full Level 2 (11 kW) charging takes 8 hours; DC fast charging hits 10-80% in 28 minutes at up to 153 kW, ideal for both home and public stations.
It’s rear-wheel drive (RWD) standard, providing efficient power delivery and nimble handling; AWD Twin Motor variants are available for more traction.
The EMA platform enables a compact 3,913 lb curb weight, 69 kWh battery integration, and sustainable materials for optimal EV specs and efficiency.
The EX30 offers premium safety and 261-mile range at $40K, beating Model Y on price but trailing in charging network and cargo space.
Yes, with pros like 268 hp pep, 261-mile range, and luxury features; cons include smaller 12.4 cu ft cargo and no AWD standard, suiting urban buyers perfectly.> The Volvo EX30 Single Motor is a premium compact electric SUV from Volvo with 268 hp, 261-mile EPA range, and 69 kWh battery for efficient city driving. Its RWD setup, 5.1-second 0-60, and Google integration make it a standout for value-conscious EV shoppers. Ideal for commutes with quick 28-minute DC charging and upscale safety.
