Mercedes-Benz

Mercedes-Benz EQS SUV 500 4MATIC

56 photos

Key Specifications

118.0 kWh Battery

530 km * Range

223 Wh/km * Efficiency

Real Range Estimation

City - Cold Weather *	530 km
Highway - Cold Weather *	380 km
Combined - Cold Weather *	450 km

between 380 - 750 km

City - Mild Weather *	750 km
Highway - Mild Weather *	480 km
Combined - Mild Weather *	595 km

Battery

Nominal Capacity*	125.0 kWh
Battery Type	Lithium-ion
Number of Cells	No Data
Architecture	400 V
Warranty Period	10 years
Warranty Mileage	250,000 km

Useable Capacity	118.0 kWh
Cathode Material	No Data
Pack Configuration	No Data
Nominal Voltage	No Data
Form Factor	No Data
Name / Reference	No Data

Performance

Acceleration 0 - 100 km/h	5.3 sec
Top Speed	210 km/h
Electric Range *	530 km

Total Power	330 kW (449 PS)
Total Torque	828 Nm
Drive	AWD

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Mercedes-Benz EQS SUV 500 4MATIC. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Mercedes-Benz EQS SUV 500 4MATIC can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)

Charging Point	Max. Power	Power	Time	Rate
Standard 11.0 kW On-Board Charger
Wall Plug (2.3 kW)	230V / 1x10A	2.3 kW	60h30m	9 km/h
1-phase 16A (3.7 kW)	230V / 1x16A	3.7 kW	37h45m	14 km/h
1-phase 32A (7.4 kW)	230V / 1x32A	7.4 kW	18h45m	28 km/h
3-phase 16A (11 kW)	400V / 3x16A	11 kW	12h45m	42 km/h
3-phase 32A (22 kW)	400V / 3x16A	11 kW †	12h45m	42 km/h
Optional 22.0kW On-Board Charger
Wall Plug (2.3 kW)	230V / 1x10A	2.3 kW	60h30m	9 km/h
1-phase 16A (3.7 kW)	230V / 1x16A	3.7 kW	37h45m	14 km/h
1-phase 32A (7.4 kW)	230V / 1x32A	7.4 kW	18h45m	28 km/h
3-phase 16A (11 kW)	400V / 3x16A	11 kW	12h45m	42 km/h
3-phase 32A (22 kW)	400V / 3x32A	22 kW †	6h30m	82 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Mercedes-Benz EQS SUV 500 4MATIC.

Max. Power: maximum power provided by charge point
Avg. Power: average power provided by charge point over a session from 10% to 80%
Time: time needed to charge from 10% to 80%
Rate: average charging speed over a session from 10% to 80%

Combined Charging System (CCS Combo 2)

Charging Point	Max. Power	Avg. Power	Time	Rate
CCS (50 kW DC)	50 kW	50 kW	104 min	210 km/h
CCS (100 kW DC)	100 kW	95 kW †	55 min	400 km/h
CCS (150 kW DC)	150 kW	125 kW †	42 min	530 km/h
CCS (175 kW DC)	175 kW	140 kW †	37 min	600 km/h
CCS (350 kW DC)	200 kW †	160 kW †	33 min	670 km/h

This vehicle supports Autocharge
This vehicle supports Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Mercedes-Benz Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Mercedes-Benz EQS SUV 500 4MATIC. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

Max. Power: maximum charge power during charging session
Charge From: battery percentage (% SoC) where charging session is started
Charge To: battery percentage (% SoC) where charging session is ended
Time: time needed for charging session

Mercedes-Benz Claimed Specifications

Max. Power	Charge From	Charge To	Time
200 kW	10 %	80 %	31 min

Dimensions and Weight

Length	5125 mm
Width	1959 mm
Width with mirrors	2157 mm
Height	1718 mm
Wheelbase	3210 mm
Weight Unladen (EU)	2840 kg
Gross Vehicle Weight (GVWR)	3410 kg
Max. Payload	645 kg

Cargo Volume	645 L
Cargo Volume Max	2100 L
Cargo Volume Frunk	0 L
Roof Load	100 kg
Tow Hitch Possible	Yes
Towing Weight Unbraked	750 kg
Towing Weight Braked	1800 kg
Vertical Load Max	100 kg

About this Vehicle

# Mercedes-Benz EQS SUV 500 4MATIC

Mercedes-Benz EQS SUV 500 4MATIC Overview

The Mercedes-Benz EQS SUV 500 4MATIC represents the brand’s commitment to premium electric luxury, positioning itself as a high-performance alternative to traditional gas-powered luxury SUVs. This electric SUV targets affluent buyers seeking sophisticated technology, refined comfort, and impressive acceleration in a spacious family vehicle. The EQS SUV 500 4MATIC combines Mercedes-Benz’s legendary engineering with cutting-edge electric powertrain technology, featuring dual electric motors and an advanced battery system that delivers both performance and practicality.

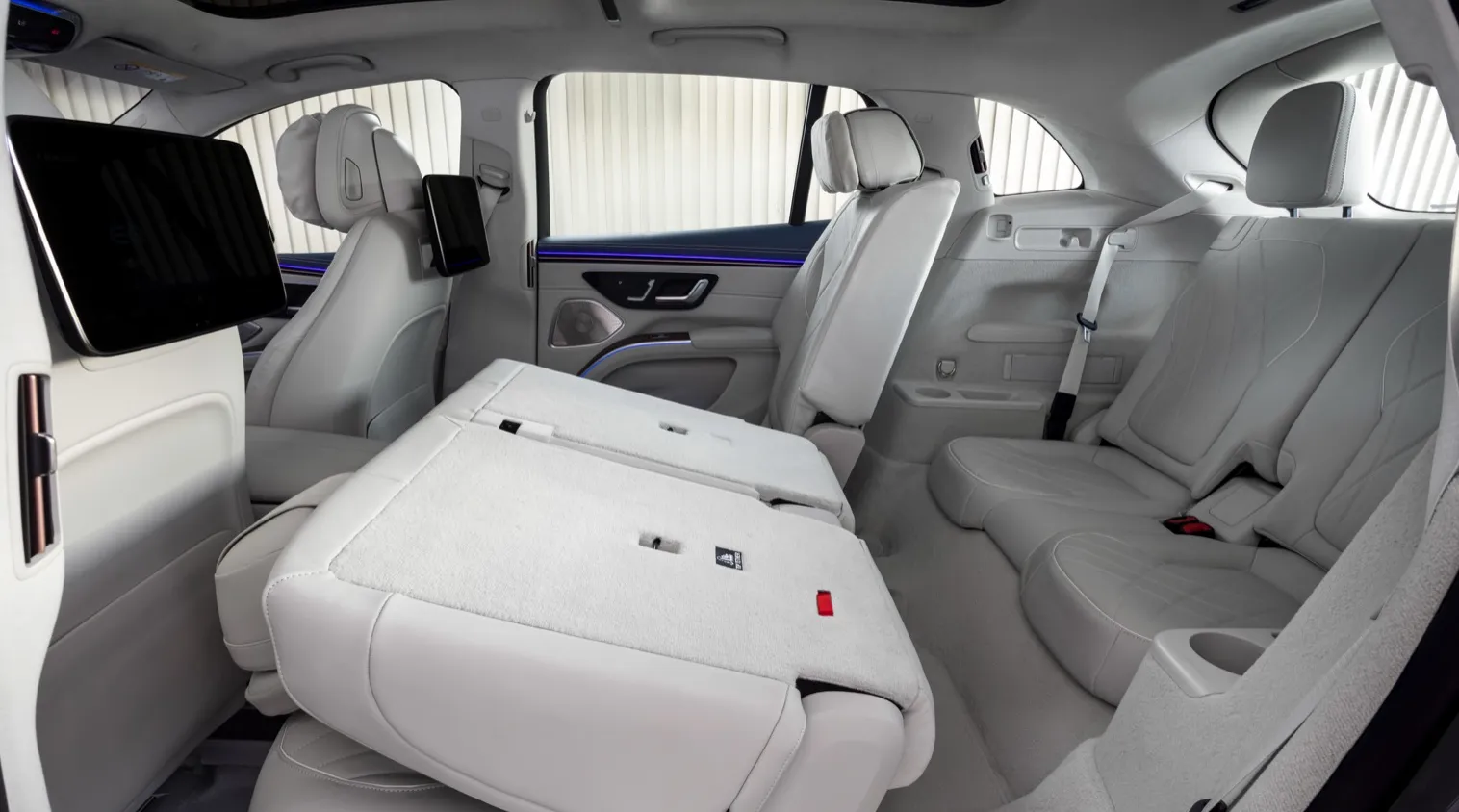

The EQS 500 4MATIC distinguishes itself through its elegant design language, which elevates the sedan’s proportions into a more commanding SUV stance. With an available third-row seating option that increases passenger capacity to seven, the Mercedes EQS SUV appeals to families who refuse to compromise on luxury or environmental consciousness. The vehicle’s AIRMATIC suspension system and rear-axle steering technology showcase Mercedes-Benz’s dedication to creating an engaging driving experience despite its substantial weight.

Mercedes-Benz EQS SUV 500 4MATIC Performance and Driving Experience

The EQS 500 4MATIC delivers impressive acceleration through its dual permanently excited synchronous electric motors, achieving 0-60 mph in approximately 4.8 seconds. The combination of 449 horsepower and 631 pound-feet of torque provides confident power delivery for highway merging and spirited driving. The all-wheel-drive system distributes power intelligently between front and rear motors, while the adaptive AIRMATIC suspension with self-leveling capability absorbs road imperfections effectively.

The Mercedes-Benz EQS SUV 500 features rear-axle steering that reduces the turning circle to 39 feet, enhancing maneuverability in tight urban environments. The electromechanical power steering and four-wheel independent suspension create a composed driving experience, though the substantial curb weight prevents truly playful handling dynamics. Intelligent Energy Recovery with paddle shifters allows drivers to modulate regenerative braking intensity, extending range during city driving.

Specification	Value
0-60 mph (0-100 km/h)	4.8 sec
Top Speed	130 mph / 210 km/h
Power Output	449 hp / 330 kW
Torque	631 lb-ft / 855 Nm

Mercedes-Benz EQS SUV 500 4MATIC Range and Battery Specifications

The EQS 500 4MATIC delivers a competitive range for a luxury electric SUV, with EPA-estimated driving range reaching up to 317 miles under optimal conditions. Real-world range typically falls between 280-310 miles, depending on driving style, weather conditions, and terrain. The vehicle’s liquid-cooled lithium-ion battery pack stores 118 kWh of usable capacity, engineered to maintain performance across diverse climates.

Energy efficiency in the Mercedes EQS SUV 500 benefits from aerodynamic design and regenerative braking technology. Cold weather reduces range by approximately 20-25 percent, while highway driving at sustained speeds diminishes efficiency compared to mixed urban-suburban driving. The battery management system actively monitors cell temperature and distributes power intelligently to optimize longevity and performance.

Range Metric	Value
EPA Range	317 miles / 510 km
Real-World Range	280-310 miles / 450-500 km
Battery Capacity	118 kWh (usable)
Battery Type	Liquid-cooled lithium-ion

Mercedes-Benz EQS SUV 500 4MATIC Charging Times and Options

The EQS 500 4MATIC supports multiple charging scenarios for maximum convenience. Home charging via a 240V Level 2 connection requires approximately 14 hours for a complete charge from empty, making overnight charging practical for daily use. DC fast charging capability reaches peak rates of 200 kW, enabling 10-80 percent charging in roughly 30-40 minutes at compatible networks.

The Mercedes-Benz EQS SUV includes intelligent charging management that optimizes battery health by limiting peak charging speeds during extreme temperatures. The vehicle’s single-speed direct-drive transmission eliminates transmission losses, maximizing efficiency during both charging and driving cycles. Wireless charging capability adds convenience for compatible installations.

Charging Method	Time	Speed
Level 1 (120V)	48+ hours	~1.4 kW
Level 2 (240V/7kW)	14 hours	7 kW
Level 2 (240V/11kW)	10 hours	11 kW
DC Fast Charge (10-80%)	30-40 min	up to 200 kW

Mercedes-Benz EQS SUV 500 4MATIC vs Competitors

The EQS 500 4MATIC competes directly with the BMW iX xDrive50, which offers similar performance but slightly less range. The Audi Q4 e-tron provides a more affordable entry into premium electric SUVs, though with reduced power and range. The Tesla Model X delivers faster acceleration and superior range but lacks the refined interior appointments and traditional luxury brand heritage that define the Mercedes EQS SUV 500. The Hyundai Ioniq 7 offers exceptional value and technology but targets a different market segment with less premium positioning.

Frequently Asked Questions

What is the real-world range of the Mercedes-Benz EQS SUV 500 4MATIC?

The EQS 500 4MATIC delivers EPA-estimated range up to 317 miles, with real-world range typically between 280-310 miles depending on driving conditions, weather, and driving style. Cold weather can reduce range by 20-25 percent.

How long does it take to charge the Mercedes-Benz EQS SUV 500 4MATIC?

Home charging via 240V Level 2 requires approximately 14 hours for a complete charge. DC fast charging reaches 10-80 percent in 30-40 minutes at compatible networks with peak charging speeds of 200 kW.

Is the Mercedes-Benz EQS SUV 500 4MATIC AWD or RWD?

The EQS 500 4MATIC features all-wheel drive with dual electric motors—one on the front axle and one on the rear—providing intelligent power distribution and enhanced traction.

What makes the Mercedes-Benz EQS SUV 500 4MATIC unique?

The EQS 500 4MATIC combines 449 horsepower with rear-axle steering technology, AIRMATIC adaptive suspension, and an available seven-seat configuration, delivering luxury performance with practical family capacity.

How does the Mercedes-Benz EQS SUV 500 4MATIC compare to the BMW iX xDrive50?

Both offer similar acceleration and luxury appointments, but the EQS 500 4MATIC provides superior range (317 miles vs. 300 miles) and more refined interior design, while the BMW iX emphasizes futuristic technology.

Is the Mercedes-Benz EQS SUV 500 4MATIC a good electric car?

Yes, the EQS 500 4MATIC excels as a premium electric SUV with impressive performance, competitive range, and luxury features. Its main drawbacks include high pricing and substantial weight that limit handling agility compared to lighter competitors.> The Mercedes-Benz EQS SUV 500 4MATIC delivers 449 horsepower and 317 miles of EPA-estimated range in a luxurious all-wheel-drive package, combining dual electric motors with advanced AIRMATIC suspension and rear-axle steering for refined performance. This premium electric SUV targets discerning buyers seeking sophisticated technology and family-friendly capacity without compromising on environmental responsibility or driving dynamics.
