Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Mercedes-Benz EQS 580 4MATIC. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Mercedes-Benz EQS 580 4MATIC can be charged, but some modes of charging might not be widely available in certain countries.
Type 2 (Mennekes - IEC 62196)
Charging Point
Max. Power
Power
Time
Rate
Standard 11.0 kW On-Board Charger
Wall Plug (2.3 kW)
230V / 1x10A
2.3 kW
60h30m
11 km/h
1-phase 16A (3.7 kW)
230V / 1x16A
3.7 kW
37h45m
17 km/h
1-phase 32A (7.4 kW)
230V / 1x32A
7.4 kW
18h45m
34 km/h
3-phase 16A (11 kW)
400V / 3x16A
11 kW
12h45m
50 km/h
3-phase 32A (22 kW)
400V / 3x16A
11 kW †
12h45m
50 km/h
Optional 22.0kW On-Board Charger
Wall Plug (2.3 kW)
230V / 1x10A
2.3 kW
60h30m
11 km/h
1-phase 16A (3.7 kW)
230V / 1x16A
3.7 kW
37h45m
17 km/h
1-phase 32A (7.4 kW)
230V / 1x32A
7.4 kW
18h45m
34 km/h
3-phase 16A (11 kW)
400V / 3x16A
11 kW
12h45m
50 km/h
3-phase 32A (22 kW)
400V / 3x32A
22 kW †
6h30m
98 km/h
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Mercedes-Benz EQS 580 4MATIC.
Max. Power: maximum power provided by charge point
Avg. Power: average power provided by charge point over a session from 10% to 80%
Time: time needed to charge from 10% to 80%
Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging Point
Max. Power
Avg. Power
Time
Rate
CCS (50 kW DC)
50 kW
50 kW
104 min
250 km/h
CCS (100 kW DC)
100 kW
95 kW †
55 min
480 km/h
CCS (150 kW DC)
150 kW
125 kW †
42 min
640 km/h
CCS (175 kW DC)
175 kW
140 kW †
37 min
720 km/h
CCS (350 kW DC)
200 kW †
160 kW †
33 min
810 km/h
This vehicle supports Autocharge
This vehicle supports Plug & Charge
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Mercedes-Benz Claimed Specifications
The table below shows the claimed specifications from the manufacturer for charging the Mercedes-Benz EQS 580 4MATIC. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.
Max. Power: maximum charge power during charging session
Charge From: battery percentage (% SoC) where charging session is started
Charge To: battery percentage (% SoC) where charging session is ended
Time: time needed for charging session
Mercedes-Benz Claimed Specifications
Max. Power
Charge From
Charge To
Time
200 kW
10 %
80 %
31 min
Dimensions and Weight
Length
5223 mm
Width
1926 mm
Width with mirrors
2125 mm
Height
1518 mm
Wheelbase
3210 mm
Weight Unladen (EU)
2635 kg
Gross Vehicle Weight (GVWR)
3060 kg
Max. Payload
500 kg
Cargo Volume
620 L
Cargo Volume Max
1700 L
Cargo Volume Frunk
0 L
Roof Load
100 kg
Tow Hitch Possible
Yes
Towing Weight Unbraked
750 kg
Towing Weight Braked
1700 kg
Vertical Load Max
100 kg
About this Vehicle
Mercedes-Benz EQS 580 4MATIC Overview

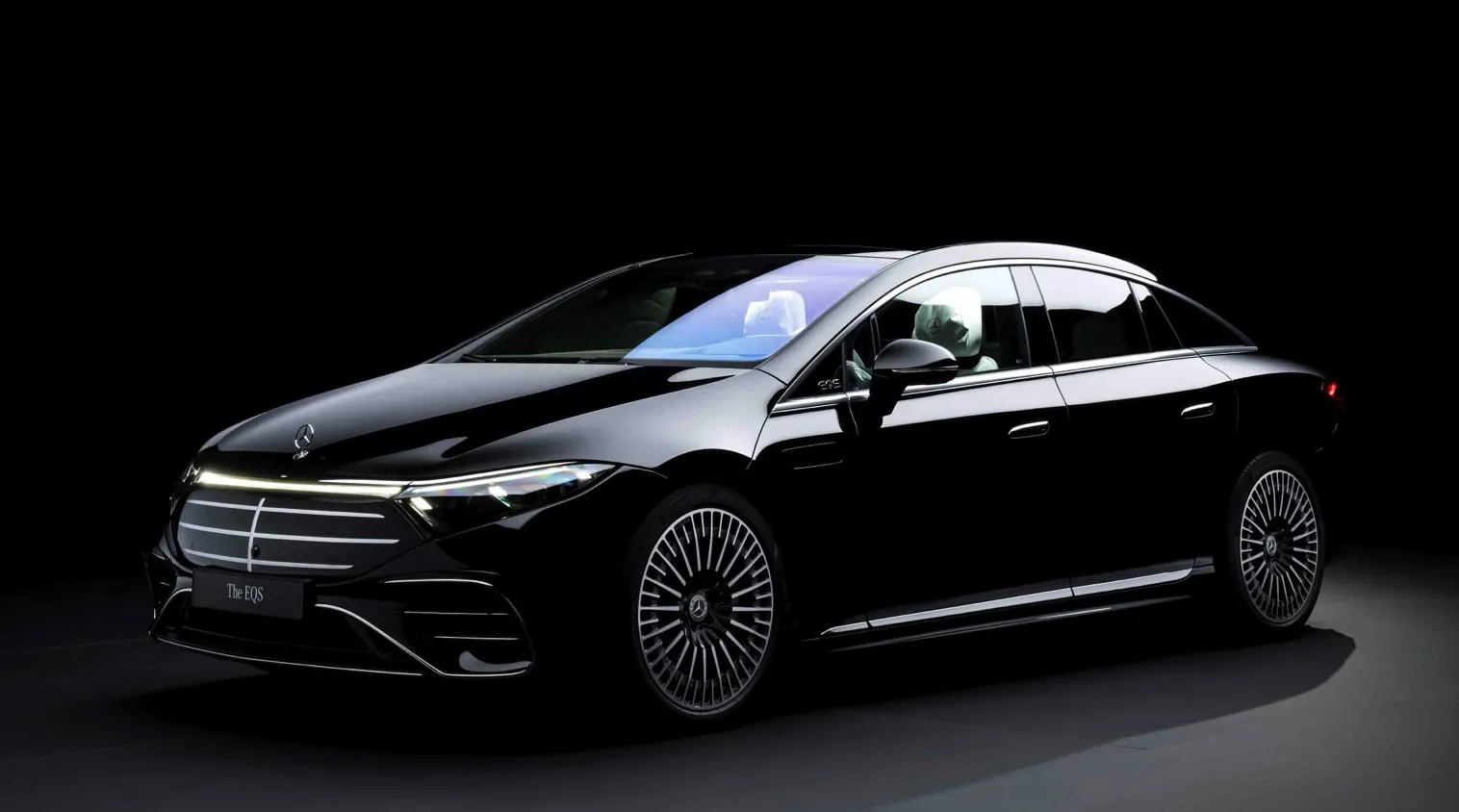

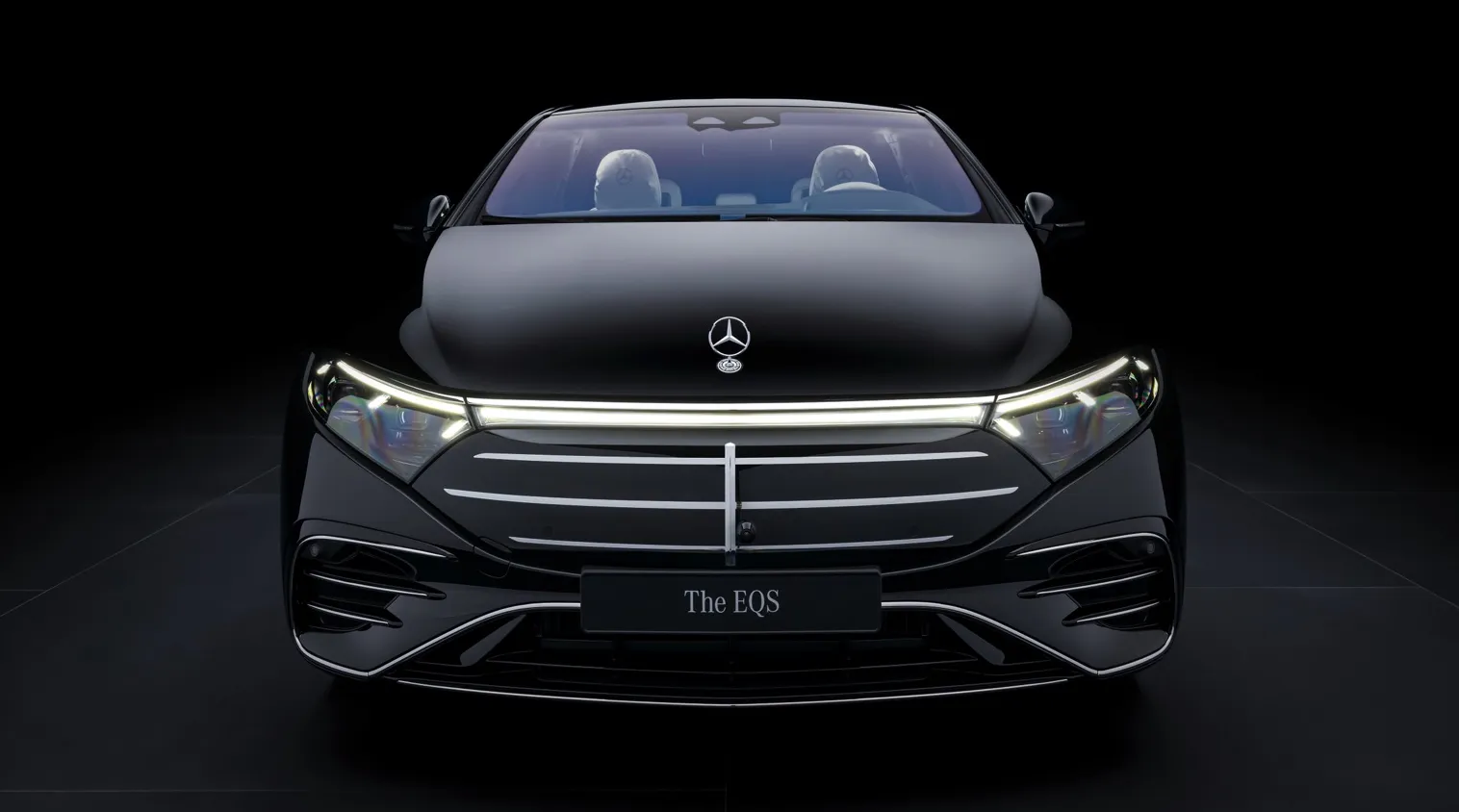

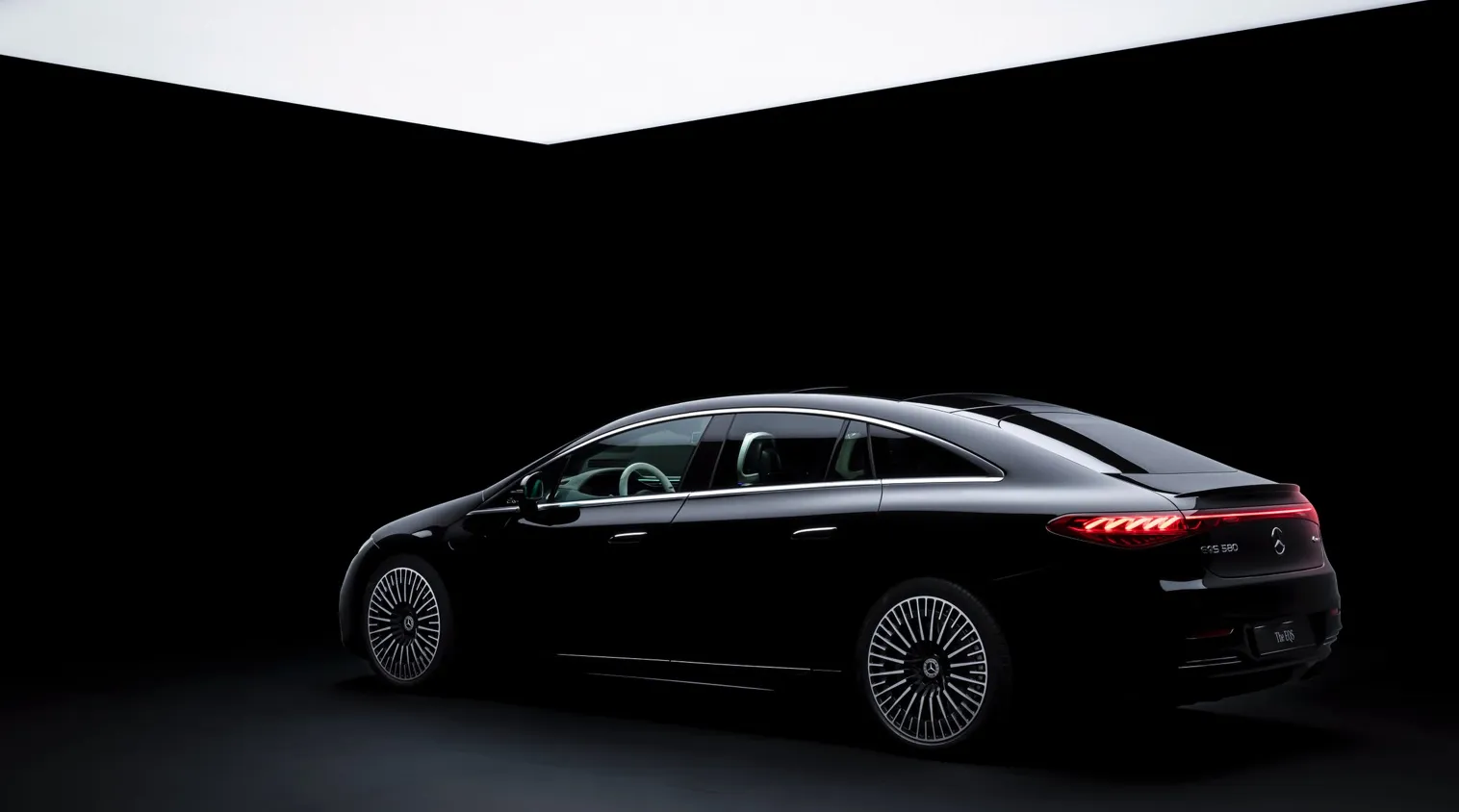

The Mercedes-Benz EQS 580 4MATIC stands as a premium electric luxury sedan, embodying the pinnacle of Mercedes-Benz’s EV innovation with its flagship positioning in the electric vehicle range. Targeted at affluent buyers seeking unparalleled sophistication, long-distance comfort, and cutting-edge technology, this Mercedes-Benz electric sedan dominates the high-end market segment against rivals like Tesla and BMW. Built on the dedicated EVA2 platform, it features a sleek aerodynamic design with an ultra-low drag coefficient, advanced MBUX Hyperscreen infotainment, and the fully variable 4MATIC all-wheel drive system for superior traction and handling.

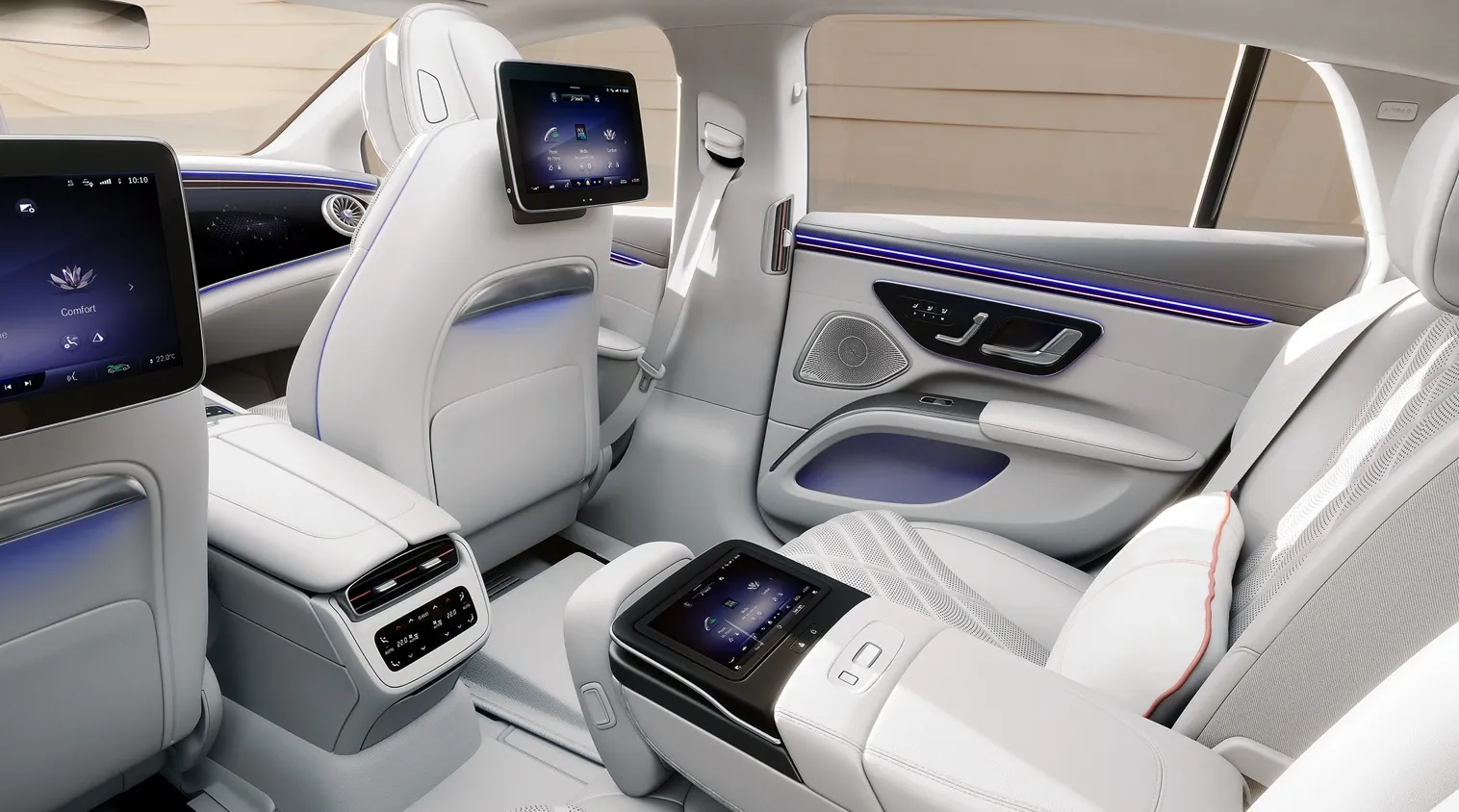

Key distinguishing features include dual permanent-magnet synchronous electric motors, a high-capacity lithium-ion battery, and luxury appointments like massaging ventilated seats and AIRMATIC suspension. In the EV landscape, the EQS 580 4MATIC review highlights its role as a benchmark for opulent electric sedans, offering EV specs that blend efficiency, performance, and over-the-top refinement. With up to 371 miles of range and hyperscreen tech, it redefines luxury travel, appealing to executives and tech-savvy drivers who prioritize sustainability without compromise.
Mercedes-Benz EQS 580 4MATIC Performance and Driving Experience
The Mercedes-Benz EQS 580 4MATIC delivers electrifying acceleration with its dual-motor setup producing seamless power delivery, sprinting from 0-60 mph in just 4.2 seconds. It’s fully variable 4MATIC all-wheel drive intelligently distributes torque between axles for precise handling, enhanced by four-wheel independent suspension and stabilizer bars that ensure composed dynamics on highways or twisty roads. Real-world driving impressions praise its refined ride quality, whisper-quiet cabin, and adaptive AIRMATIC system that adjusts for comfort or sportiness, making it ideal for long hauls with minimal body roll and confident grip.
Specification
Value
0-60 mph (0-100 km/h)
<strong>4.2 sec</strong>
Top Speed
<strong>149 mph / 240 km/h</strong>
Power Output
<strong>536 hp / 400 kW</strong>
Torque
<strong>633 lb-ft / 858 Nm</strong>
Mercedes-Benz EQS 580 4MATIC Range and Battery Specifications
Official EQS 580 4MATIC WLTP range reaches up to 371 miles, though EPA estimates align closer to 317-323 miles for real-world conditions, influenced by factors like cold weather, aggressive driving, or hilly terrain. The EQS 580 4MATIC battery specs include a 118 kWh liquid-cooled lithium-ion pack (107.8 kWh usable in some configs), delivering impressive energy efficiency around 74-79 MPGe combined. Real-world range typically hits 285-317 miles, with efficiency at approximately 300 Wh/mi, making it a strong contender for cross-country trips when mindful of driving style and climate.
Range Metric
Value
WLTP Range
<strong>371 miles / 597 km</strong>
EPA Range
<strong>323 miles / 520 km</strong>
Real-World Range
<strong>285-317 miles / 459-510 km</strong>
Battery Capacity
<strong>118 kWh (107.8 kWh usable)</strong>
Mercedes-Benz EQS 580 4MATIC Charging Times and Options
Home charging for the Mercedes-Benz EQS 580 4MATIC is straightforward with Level 1 at 120V for overnight top-ups or Level 2 at 240V/11 kW for faster replenishment in about 11.5 hours from empty. DC fast charging shines with up to 200 kW peak speeds, achieving 10-80% in roughly 31 minutes, compatible with major networks like Electrify America. Practical scenarios include daily Level 2 for commuters or quick DC stops on road trips, supported by onboard AC up to 9.6 kW and features like preconditioning for optimal sessions.
Charging Method
Time
Speed
Level 1 (120V)
<strong>~50 hours</strong>
<strong>~1.4 kW</strong>
Level 2 (240V/7kW)
<strong>~17 hours</strong>
<strong>~7 kW</strong>
Level 2 (240V/11kW)
<strong>~11.5 hours</strong>
<strong>~11 kW</strong>
DC Fast Charge (10-80%)
<strong>31 min</strong>
<strong>up to 200 kW</strong>
Mercedes-Benz EQS 580 4MATIC vs Competitors
In the EQS 580 4MATIC vs Tesla Model S, the Mercedes edges out with superior luxury interiors and hyperscreen tech, though Tesla offers better supercharging access and slightly quicker acceleration; against the BMW i7, it provides longer range (371 vs 300 miles WLTP) and more torque, but BMW counters with sportier handling. Compared to the Audi e-tron GT, the EQS 580 4MATIC excels in efficiency and rear space, making it the refined choice for luxury EV buyers in this EQS 580 4MATIC comparison.
Frequently Asked Questions
The Mercedes-Benz EQS 580 4MATIC real-world range averages 285-317 miles, depending on conditions, with EPA estimates at 323 miles and factors like weather or speed reducing it from the 371-mile WLTP figure.
Level 2 (240V/11kW) takes about 11.5 hours for a full charge, while DC fast charging (10-80%) completes in 31 minutes at up to 200 kW, ideal for both home and public use.
The Mercedes-Benz EQS 580 4MATIC is exclusively all-wheel drive via its fully variable 4MATIC system, pairing dual motors for optimal traction, torque vectoring, and performance in all conditions.

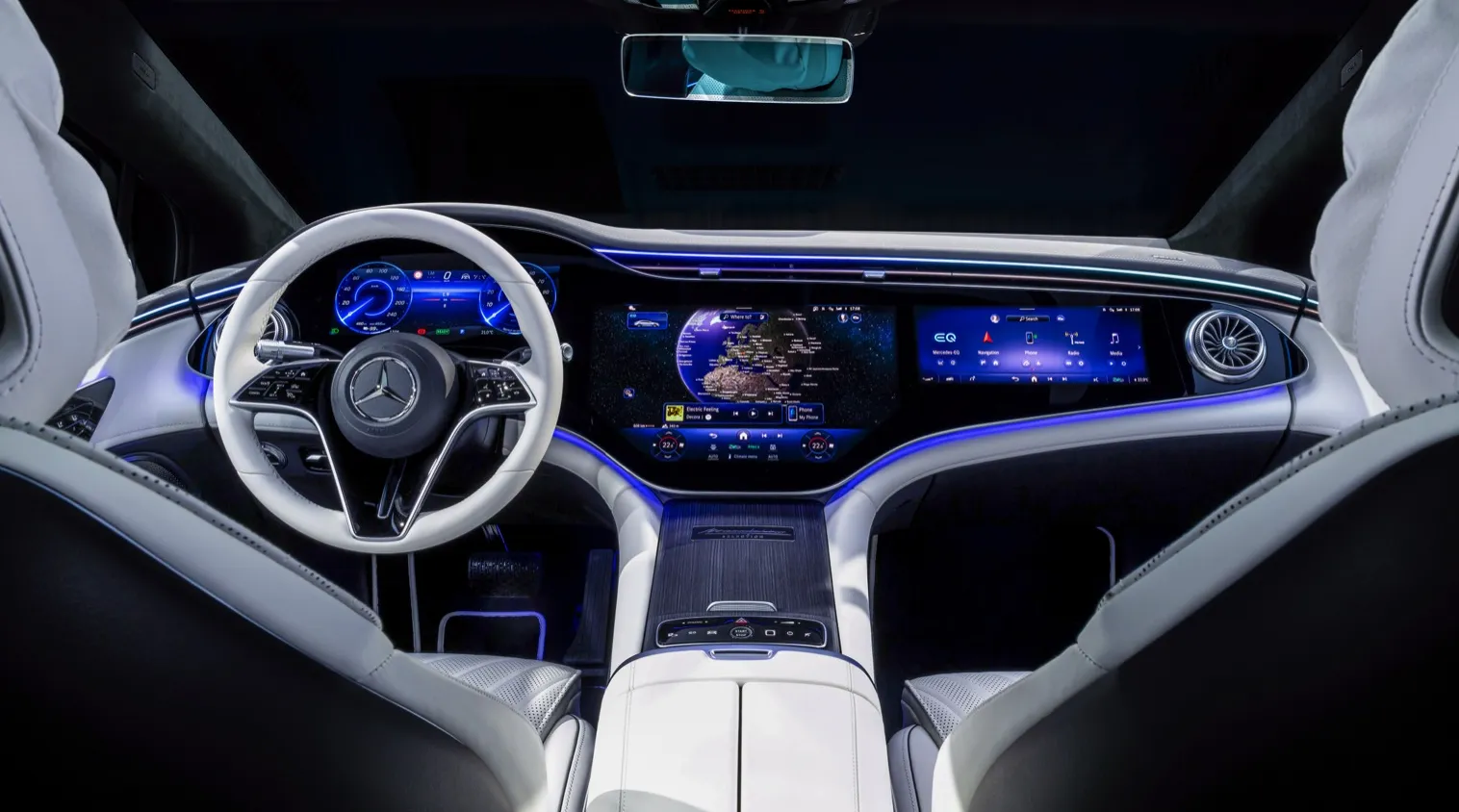

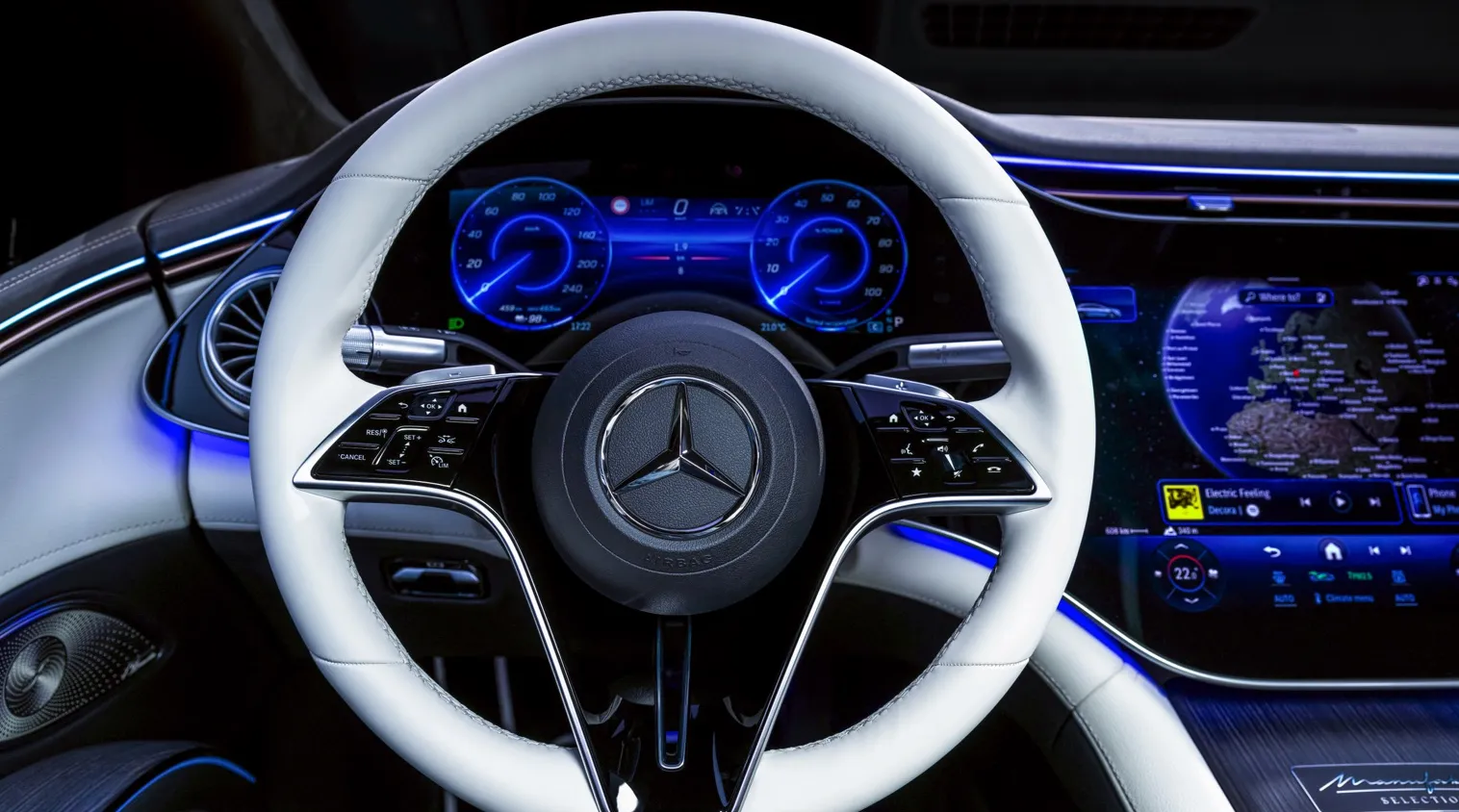

The MBUX Hyperscreen is an expansive 56-inch curved glass dashboard spanning three OLED screens (12.3-inch instrument, 17.7-inch central, 12.3-inch passenger), offering AI-driven navigation, entertainment, and customizable controls with wireless Apple CarPlay/Android Auto.
The EQS 580 4MATIC offers 536 hp, 371-mile WLTP range, and unmatched luxury like massaging seats, outperforming Model S in refinement but trailing in charging network and base price efficiency.
Yes, with pros like 536 hp performance, 371-mile range, hyperscreen luxury, and advanced safety, cons include high cost (~$127k MSRP) and heavier curb weight, ideal for premium buyers seeking the ultimate EV sedan.> The Mercedes-Benz EQS 580 4MATIC is a flagship luxury electric sedan with 536 hp, up to 371 miles WLTP range, and 118 kWh battery, powered by dual motors and 4MATIC AWD. It excels in opulent comfort, hyperscreen tech, and efficiency (74-79 MPGe), outshining competitors in refinement for long-haul EV travel. Perfect for executives demanding premium EV specs and sophistication.
