Fiat

Fiat 500e 3+1 42 kWh

Key Specifications

37.3 kWh Battery
235 km * Range
159 Wh/km * Efficiency

Real Range Estimation

City - Cold Weather *230 km
Highway - Cold Weather *165 km
Combined - Cold Weather *195 km

between 165 - 350 km

City - Mild Weather *350 km
Highway - Mild Weather *210 km
Combined - Mild Weather *270 km

Battery

Nominal Capacity42.0 kWh
Battery TypeLithium-ion
Number of Cells192
Architecture400 V
Warranty PeriodNo Data
Warranty MileageNo Data
Useable Capacity37.3 kWh
Cathode MaterialNo Data
Pack Configuration96s2p
Nominal Voltage355 V
Form FactorNo Data
Name / ReferenceNo Data

Performance

Acceleration 0 - 100 km/h9.0 sec
Top Speed150 km/h
Electric Range *235 km
Total Power87 kW (118 PS)
Total Torque220 Nm
DriveFront

Home and Destination Charging (0 -> 100%)

Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Fiat 500e 3+1 42 kWh. Each option shows how fast the battery can be charged from empty to full.

Europe

Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Fiat 500e 3+1 42 kWh can be charged, but some modes of charging might not be widely available in certain countries.

Type 2 (Mennekes - IEC 62196)
Charging PointMax. PowerPowerTimeRate
Wall Plug (2.3 kW)230V / 1x10A2.3 kW19h15m12 km/h
1-phase 16A (3.7 kW)230V / 1x16A3.7 kW12 hours20 km/h
1-phase 32A (7.4 kW)230V / 1x32A7.4 kW6 hours39 km/h
3-phase 16A (11 kW)400V / 3x16A11 kW4 hours59 km/h
3-phase 32A (22 kW)400V / 3x16A11 kW †4 hours59 km/h

† = Limited by on-board charger, vehicle cannot charge faster.

Fast Charging (10 -> 80%)

Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Fiat 500e 3+1 42 kWh.

  • Max. Power: maximum power provided by charge point
  • Avg. Power: average power provided by charge point over a session from 10% to 80%
  • Time: time needed to charge from 10% to 80%
  • Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging PointMax. PowerAvg. PowerTimeRate
CCS (50 kW DC)49 kW †49 kW †34 min290 km/h
CCS (150 kW DC)85 kW †67 kW †25 min390 km/h
Charge Curve

Data made available by Fastned

This vehicle supports Autocharge
This vehicle does not support Plug & Charge

† = Limited by charging capabilities of vehicle

Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.

Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.

Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.

Fiat Claimed Specifications

The table below shows the claimed specifications from the manufacturer for charging the Fiat 500e 3+1 42 kWh. The specifications can differ from the table above for a variety of reasons. If real-world charge tests are available, these differences can be signifcant. If no real-world tests are available, the table above will be based on the manufacturer specifications as per the table below.

  • Max. Power: maximum charge power during charging session
  • Charge From: battery percentage (% SoC) where charging session is started
  • Charge To: battery percentage (% SoC) where charging session is ended
  • Time: time needed for charging session
Fiat Claimed Specifications
Max. PowerCharge FromCharge ToTime
85 kW No Data No Data No Data

Dimensions and Weight

Length3631 mm
Width1683 mm
Width with mirrors1900 mm
Height1529 mm
Wheelbase2322 mm
Weight Unladen (EU)1400 kg
Gross Vehicle Weight (GVWR)1725 kg
Max. Payload400 kg
Cargo Volume185 L
Cargo Volume Max550 L
Cargo Volume Frunk0 L
Roof LoadNo Data
Tow Hitch PossibleNo
Towing Weight Unbraked0 kg
Towing Weight Braked0 kg
Vertical Load Max0 kg

About this Vehicle

Fiat 500e 3+1 42 kWh Overview

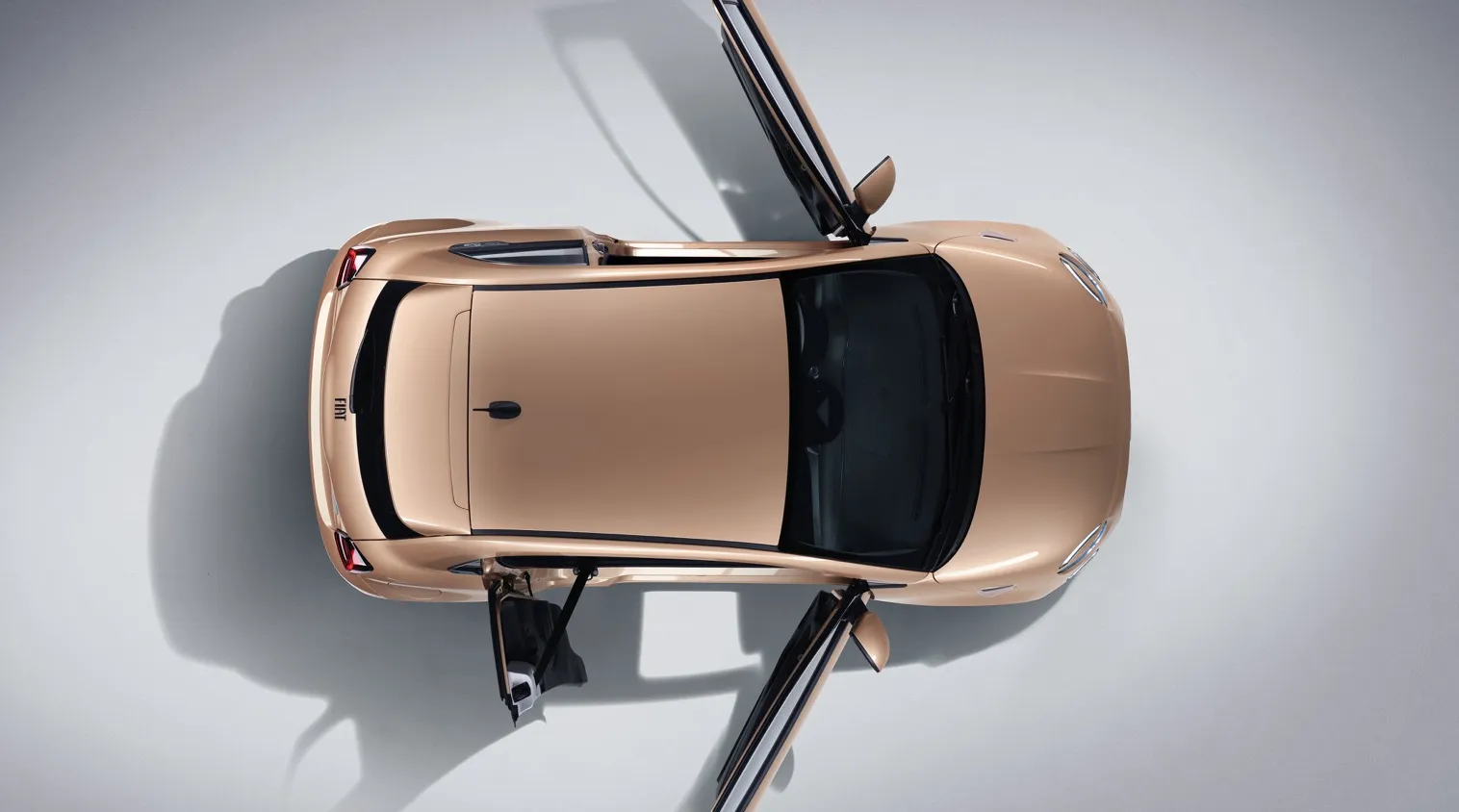

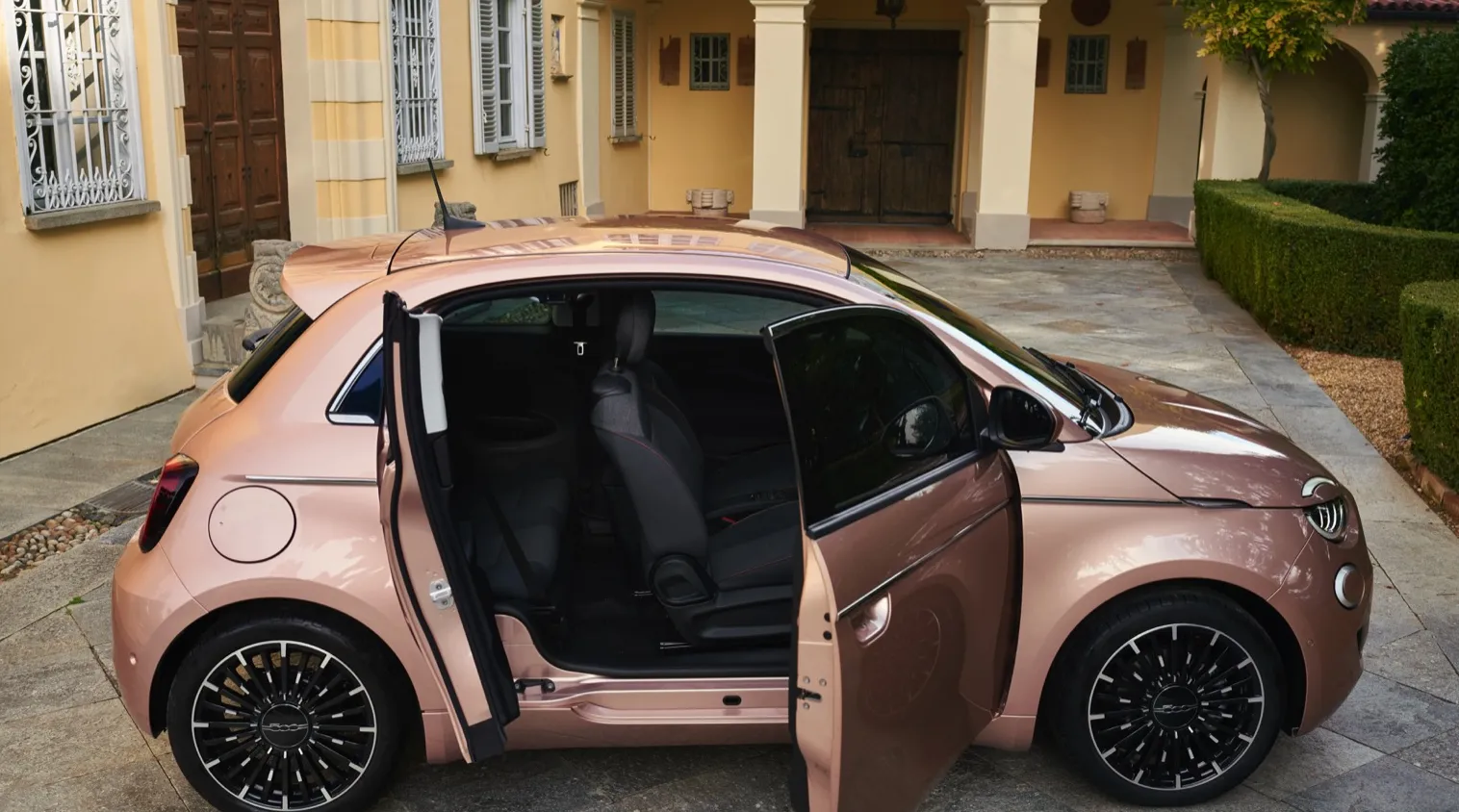

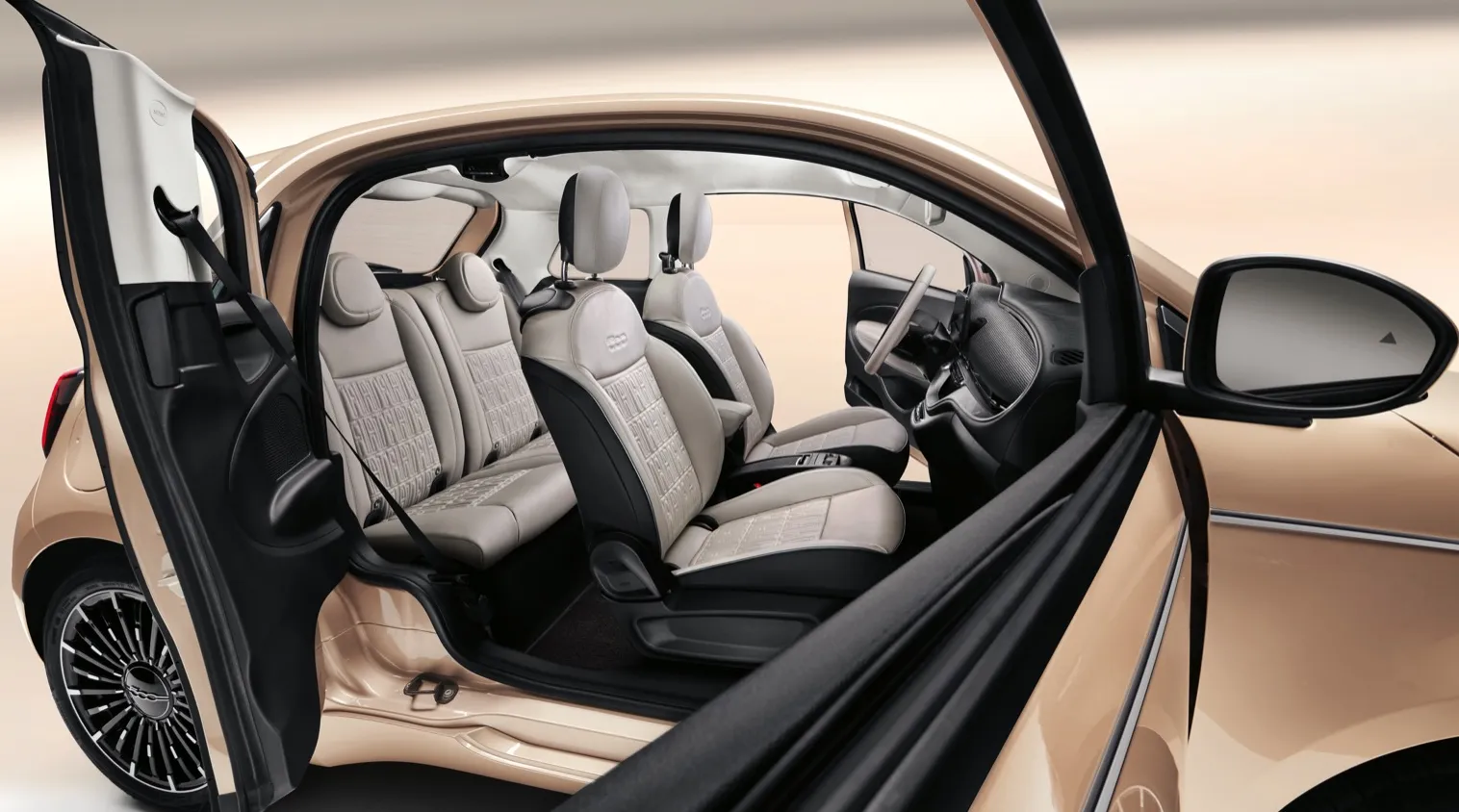

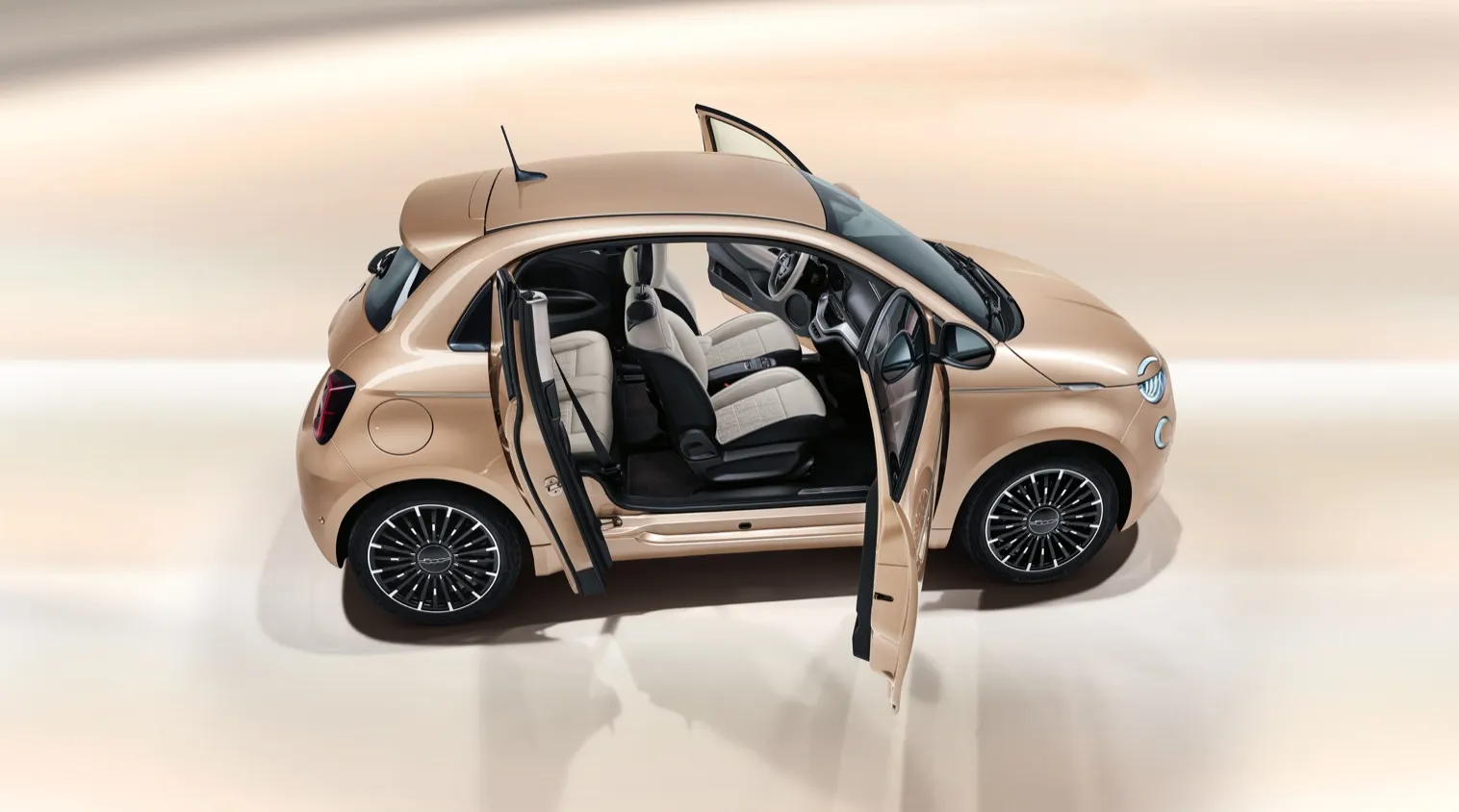

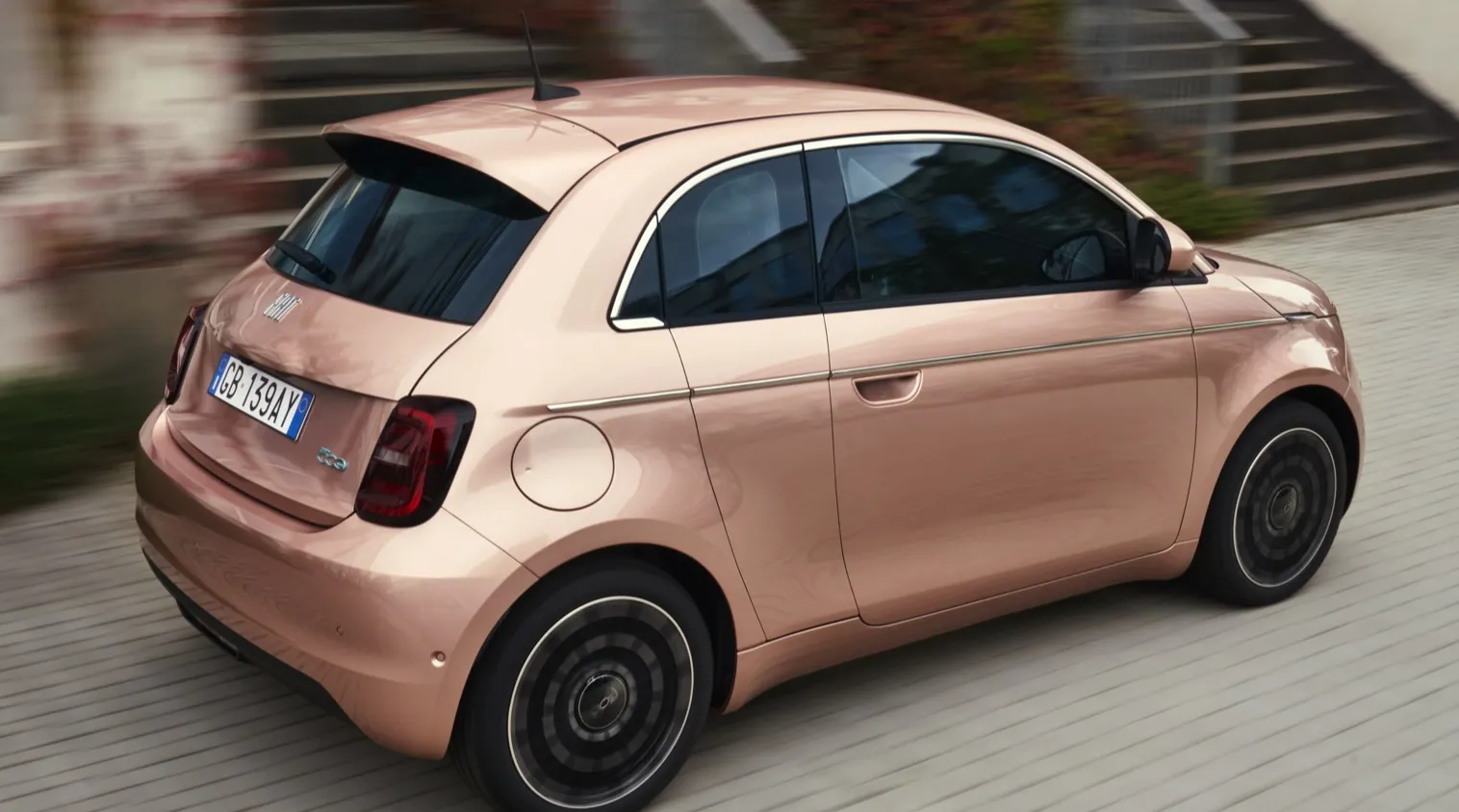

The Fiat 500e 3+1 42 kWh is positioned as a stylish, urban-focused mainstream electric city car with a clever twist: an extra rear-hinged “+1” door on the passenger side for easier access to the back seats. Aimed at city drivers, downsizers and young families who mostly drive in town but want occasional four-seat practicality, this Fiat electric hatchback sits in the affordable end of the EV market while offering a distinctly premium design feel.

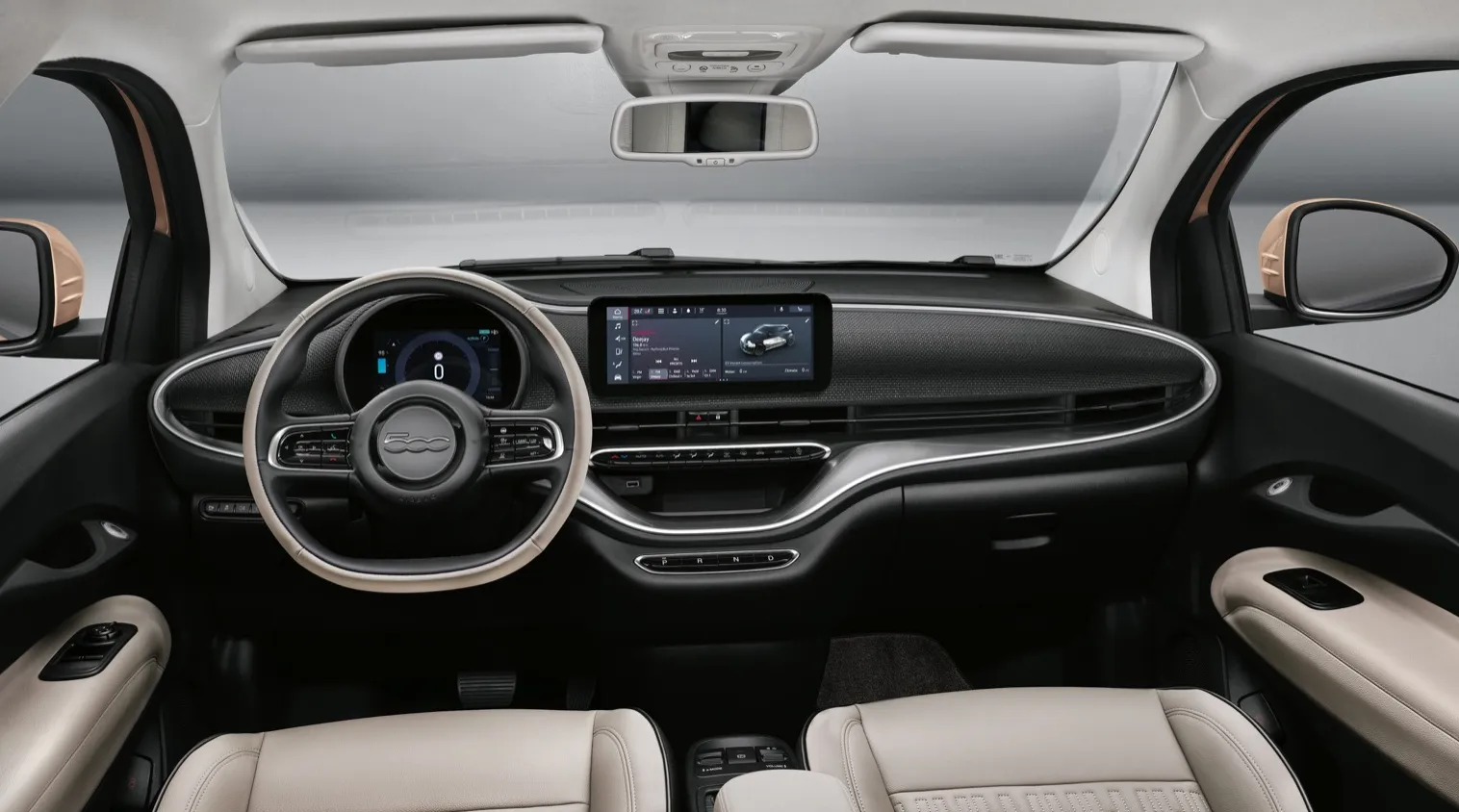

Based on Stellantis’ dedicated small EV platform, the Fiat 500e 3+1 pairs retro-inspired styling with modern tech, including a digital cockpit and advanced driver assist systems. The 42 kWh battery is the larger of the two available Fiat 500e battery options, giving this model significantly better EV specs and range than the 24 kWh variant. For many buyers, that makes the 3+1 42 kWh the sweet spot of the range.

In the wider Fiat electric car landscape, the 500e 3+1 matters because it delivers genuinely usable electric vehicle range in a compact footprint, while the extra door solves one of the classic pain points of tiny three‑door city cars. As more shoppers search for Fiat 500e review content, this variant stands out as the most versatile version of Fiat’s reborn electric icon.

Fiat 500e 3+1 42 kWh Performance and Driving Experience

With its 87 kW front-mounted motor, the Fiat 500e 3+1 42 kWh produces about 118 hp and 220 Nm of torque, driving the front wheels through a single-speed transmission. This delivers brisk city performance, with 0–100 km/h in around 9.0 seconds and an electronically limited 150 km/h top speed, making it perfectly adequate for motorway stints. Instant torque gives the 500e 3+1 a lively, responsive feel in urban traffic.

On the road, the Fiat 500e 3+1 42 kWh feels nimble and easy to place, with light steering ideal for tight streets and parking, yet composed enough at higher speeds. Regenerative braking is adjustable via drive modes, allowing near one‑pedal driving in Range mode, while Normal and Sherpa modes balance performance and efficiency. Overall, the driving experience prioritizes comfort and ease of use over outright sportiness, which suits its city-car brief.

Specification Value
0-60 mph (0-100 km/h) ~9.0 sec
Top Speed 93 mph / 150 km/h
Power Output 118 hp / 87 kW
Torque 162 lb-ft / 220 Nm

Fiat 500e 3+1 42 kWh Range and Battery Specifications

The Fiat 500e 3+1 42 kWh WLTP range is quoted at up to 320 km (about 199 miles) on the combined cycle for models with the larger battery. In real-world mixed driving, most owners can expect roughly 240–280 km (150–175 miles) depending on climate, speed and usage of climate control. As a compact EV primarily designed for urban and suburban use, the Fiat 500e 3+1 42 kWh is a genuinely practical daily driver rather than just a short-hop commuter.

Under the floor sits a 42 kWh lithium-ion pack (around 37 kWh usable) delivering good efficiency; independent tests of the 42 kWh Fiat 500e show consumption in the 14–18 kWh/100 km range (about 225–290 Wh/mile), making it one of the more efficient small EVs on sale. The Fiat 500e 3+1 real-world range will drop in cold weather, at motorway speeds or with heavy loads, but careful driving in town can exceed the official figures on urban routes.

Range Metric Value
WLTP Range 199 miles / 320 km
EPA Range ~149 miles / 240 km (similar 42 kWh setup)
Real-World Range ~150–175 miles / 240–280 km
Battery Capacity ~37 kWh usable (42 kWh gross)

Fiat 500e 3+1 42 kWh Charging Times and Options

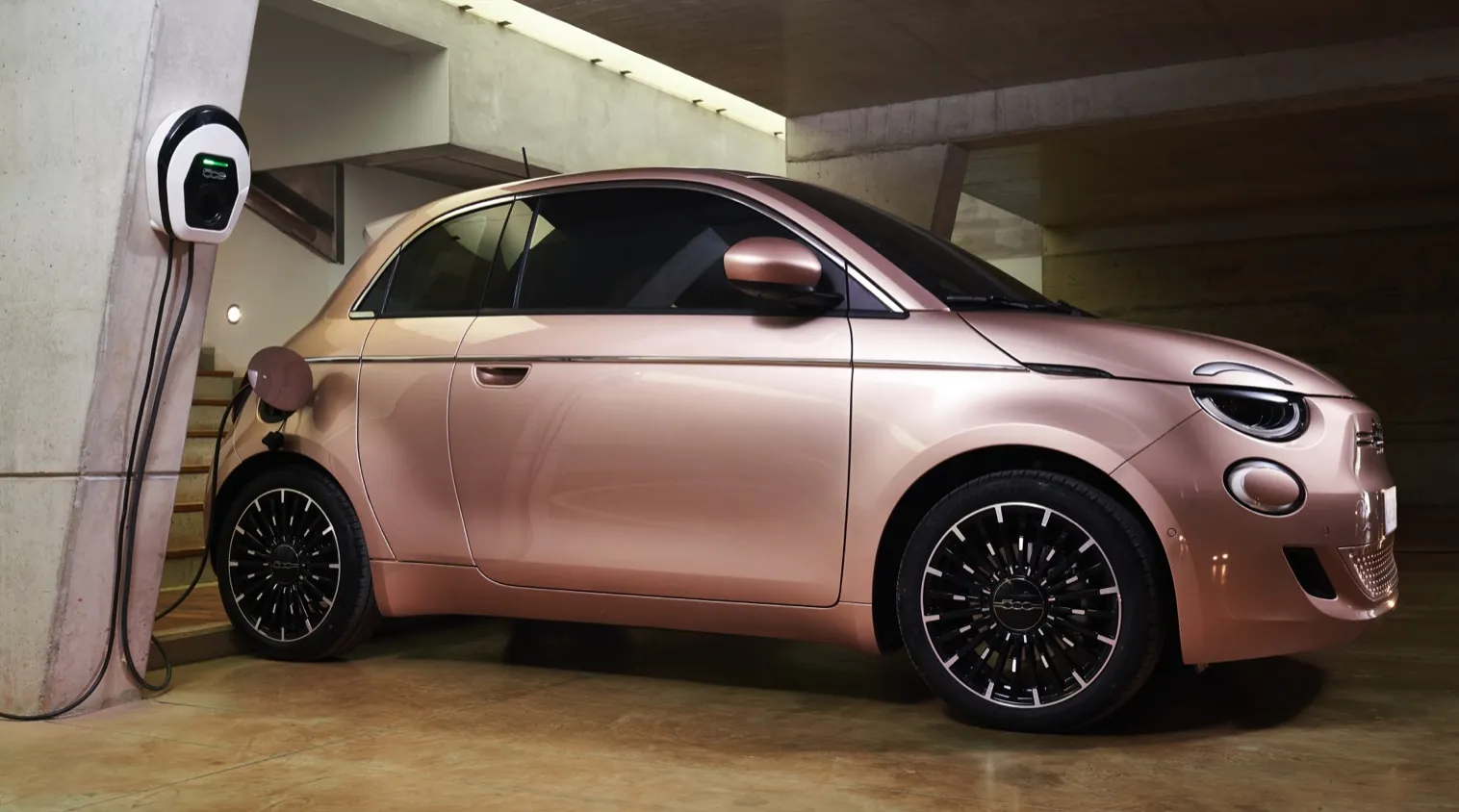

At home, the Fiat 500e 3+1 42 kWh can be charged via standard AC. On a Level 1 (120V) socket, it is very slow and really only suitable for topping up; Level 2 (240V) with an onboard charger up to 11 kW is the recommended solution, fully recharging the battery overnight. This makes living with the Fiat 500e 3+1 straightforward for owners with off‑street parking.

On the road, the 42 kWh versions support DC fast charging up to 85 kW, allowing a 10–80% charge in about 30–35 minutes under ideal conditions. The car uses the common CCS standard in Europe, compatible with major charging networks, so planning longer journeys is relatively easy. For a city-focused EV, these Fiat 500e 3+1 charging times are very competitive.

Charging Method Time Speed
Level 1 (120V) ~30–37 hours (0–100%) ~1.4 kW
Level 2 (240V/7kW) ~7–8 hours (0–100%) ~7 kW
Level 2 (240V/11kW) ~4–5 hours (0–100%) ~11 kW
DC Fast Charge (10-80%) ~30–35 min up to 85 kW

Fiat 500e 3+1 42 kWh vs Competitors

Against rivals like the Renault Zoe, Peugeot e-208, and Mini Electric, the Fiat 500e 3+1 42 kWh trades outright rear-seat space for style and character, but its extra “+1” door makes it more practical than the regular three‑door 500e. In a Fiat 500e vs Mini Electric comparison, the Fiat offers similar performance but typically better efficiency and a fresher EV‑native platform. Versus a Fiat 500e vs Peugeot e-208 matchup, the Peugeot wins on space and range, while the Fiat 500e 3+1 wins on urban manoeuvrability and charm, making it a compelling city choice.

Frequently Asked Questions

In everyday mixed driving, the Fiat 500e 3+1 42 kWh typically delivers around 240–280 km (150–175 miles) on a full charge, compared with an official WLTP figure of up to 320 km (199 miles).

On a 7 kW home wallbox, a 0–100% charge takes roughly 7–8 hours, while an 11 kW AC charger cuts that to around 4–5 hours. Using a DC fast charger up to 85 kW, you can go from 10–80% in about 30–35 minutes.

The Fiat 500e 3+1 42 kWh is front-wheel drive (FWD) only, with a single electric motor driving the front axle through a one‑speed transmission.

Sherpa mode is an efficiency-focused drive mode that limits top speed, softens accelerator response, and can reduce or disable energy-hungry systems like climate control to maximize remaining range when the battery is low.

The Fiat 500e 3+1 42 kWh generally offers better efficiency and comparable performance to the Mini Electric, with the added practicality of the extra rear-hinged door, while the Mini counters with a more premium driving feel and brand image.

Yes, the Fiat 500e 3+1 42 kWh is an excellent city EV: it combines distinctive design, strong efficiency, decent real-world range and clever access via the “+1” door. Its main downsides are limited rear space and a relatively small boot compared with larger rivals.> The Fiat 500e 3+1 42 kWh is Fiat’s most practical electric 500, pairing a 42 kWh battery and 118 hp motor with a clever extra rear-hinged door for easier access. With up to 320 km WLTP range, DC fast charging at 85 kW, and efficient urban-friendly performance, it’s a standout compact EV for style-conscious city drivers.
