Charging is possible by using a regular wall plug or a charging station. Public charging is always done through a charging station. How fast the EV can charge depends on the charging station (EVSE) used and the maximum charging capacity of the EV. The table below shows all possible options for charging the Fiat 500e 3+1 24 kWh. Each option shows how fast the battery can be charged from empty to full.
Europe
Charging an EV in Europe differs by country. Some European countries primarily use 1-phase connections to the grid, while other countries are almost exclusively using a 3-phase connection. The table below shows all possible ways the Fiat 500e 3+1 24 kWh can be charged, but some modes of charging might not be widely available in certain countries.
Type 2 (Mennekes - IEC 62196)
Charging Point
Max. Power
Power
Time
Rate
Wall Plug (2.3 kW)
230V / 1x10A
2.3 kW
11 hours
12 km/h
1-phase 16A (3.7 kW)
230V / 1x16A
3.7 kW
7 hours
19 km/h
1-phase 32A (7.4 kW)
230V / 1x32A
7.4 kW
3h30m
39 km/h
3-phase 16A (11 kW)
400V / 3x16A
11 kW
2h30m
54 km/h
3-phase 32A (22 kW)
400V / 3x16A
11 kW †
2h30m
54 km/h
† = Limited by on-board charger, vehicle cannot charge faster.
Fast Charging (10 -> 80%)
Rapid charging enables longer journeys by adding as much range as possible in the shortest amount of time. Charging power will decrease significantly after 80% state-of-charge has been reached. A typical rapid charge therefore rarely exceeds 80% SoC. The rapid charge rate of an EV depends on the charger used and the maximum charging power the EV can handle. The table below shows all details for rapid charging the Fiat 500e 3+1 24 kWh.
Max. Power: maximum power provided by charge point
Avg. Power: average power provided by charge point over a session from 10% to 80%
Time: time needed to charge from 10% to 80%
Rate: average charging speed over a session from 10% to 80%
Combined Charging System (CCS Combo 2)
Charging Point
Max. Power
Avg. Power
Time
Rate
CCS (50 kW DC)
50 kW
40 kW †
24 min
230 km/h
CCS (100 kW DC)
50 kW †
40 kW †
24 min
230 km/h
CCS (150 kW DC)
50 kW †
40 kW †
24 min
230 km/h
This vehicle supports Autocharge
This vehicle does not support Plug & Charge
† = Limited by charging capabilities of vehicle
Autocharge: allows for automatic initiation of a charging session at supported CCS charging stations.
Plug & Charge: allows for automatic initiation of a charging session at supported CCS charging stations in accordance with ISO 15118.
Actual charging rates may differ from data shown due to factors like outside temperature, state of the battery and driving style.
Dimensions and Weight
Length
3631 mm
Width
1683 mm
Width with mirrors
1900 mm
Height
1529 mm
Wheelbase
2322 mm
Weight Unladen (EU)
1290 kg
Gross Vehicle Weight (GVWR)
No Data
Max. Payload
No Data
Cargo Volume
185 L
Cargo Volume Max
550 L
Cargo Volume Frunk
0 L
Roof Load
No Data
Tow Hitch Possible
No
Towing Weight Unbraked
0 kg
Towing Weight Braked
0 kg
Vertical Load Max
0 kg
About this Vehicle
# Fiat 500e 3+1 24 kWh: Compact Urban Electric Vehicle
Fiat 500e 3+1 Overview
The Fiat 500e 3+1 represents an affordable entry point into electric vehicle ownership, positioning itself as a practical city car for budget-conscious drivers seeking zero-emission commuting. This compact hatchback targets urban commuters and first-time EV buyers who prioritize affordability and maneuverability over long-distance range. The 500e 3+1 distinguishes itself through its iconic retro design combined with modern electric powertrain technology, offering a unique blend of heritage styling and contemporary sustainability.

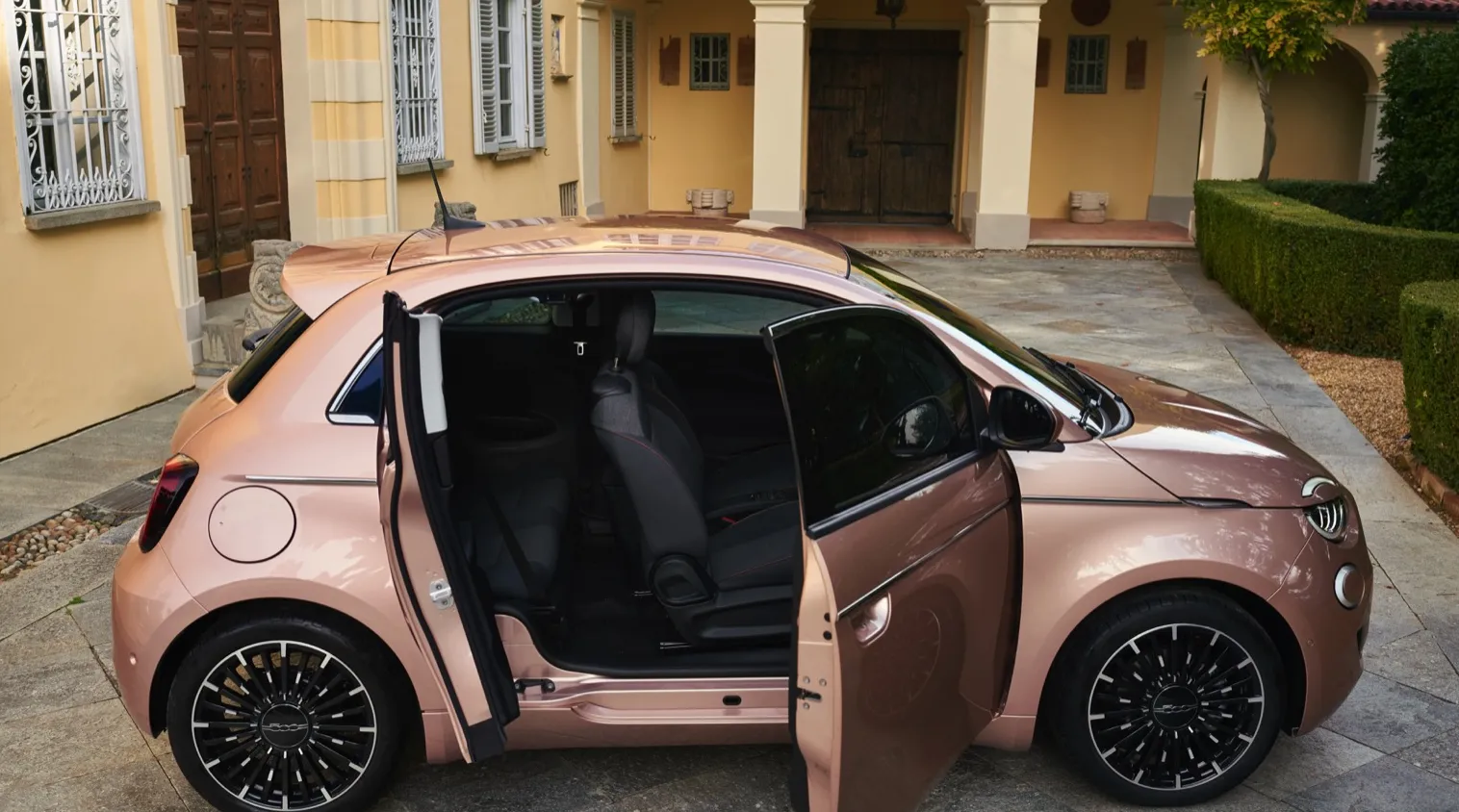

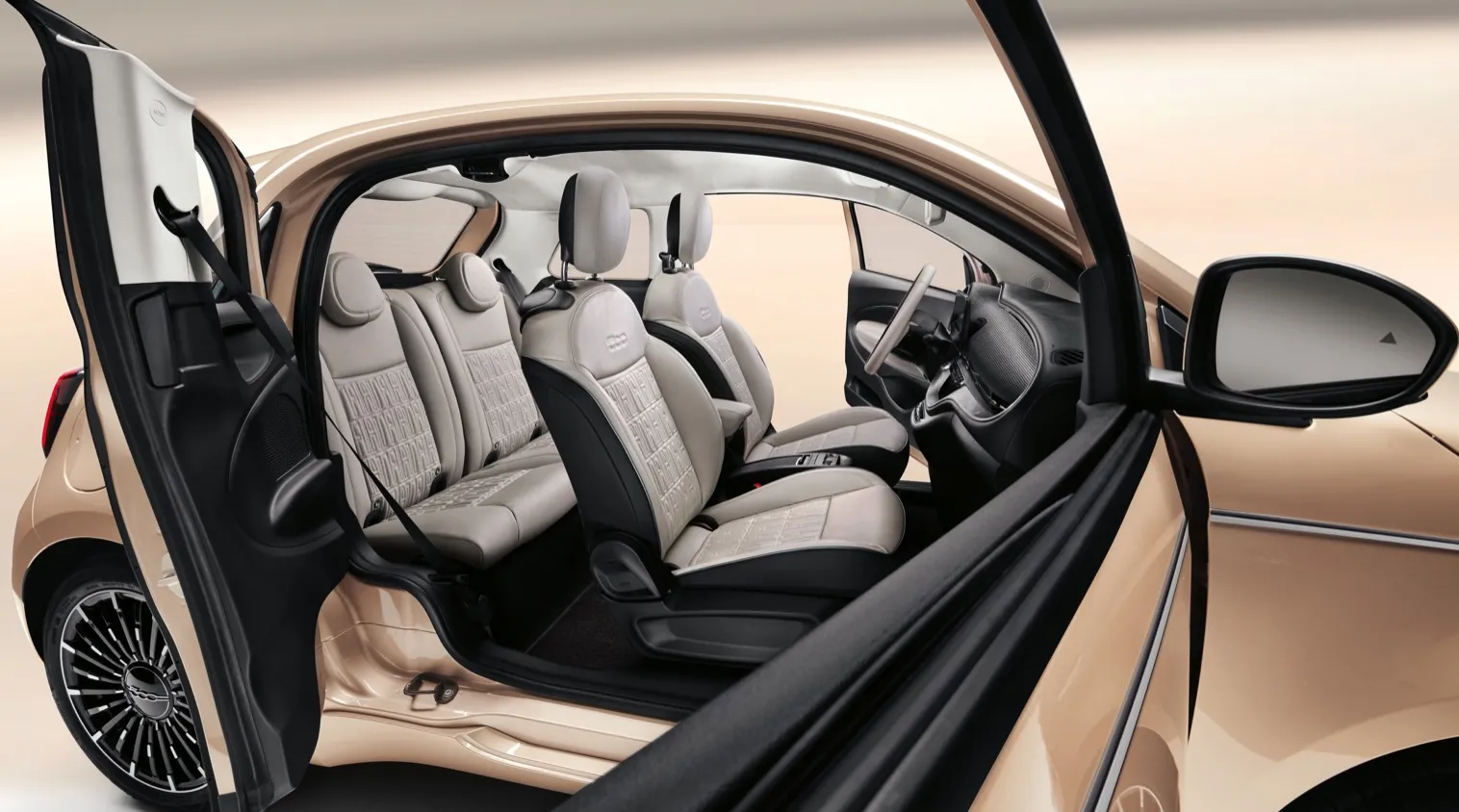

The 24 kWh battery variant of the Fiat 500e 3+1 delivers sufficient range for daily city driving while maintaining an accessible price point. This electric hatchback features a front-wheel-drive configuration with a single electric motor, making it nimble and easy to park in tight urban spaces. The Fiat 500e 3+1 includes the distinctive “3+1” door configuration—three conventional doors plus a smaller rear-hinged door on the passenger side—providing convenient access to rear passengers without requiring a full-size rear door. This design innovation makes the Fiat 500e 3+1 particularly appealing for city dwellers navigating narrow parking spaces and congested streets.
Fiat 500e 3+1 Performance and Driving Experience
The Fiat 500e 3+1 24 kWh delivers modest but adequate performance for urban driving scenarios. The electric motor produces 111 horsepower and 199 Nm of torque, enabling brisk acceleration suitable for city traffic and highway merging. The lightweight construction and responsive steering provide go-kart-like handling characteristics that make the Fiat 500e 3+1 enjoyable to drive through winding city streets. While not designed for spirited driving, the Fiat 500e 3+1 offers sufficient power delivery for practical daily commuting.
Specification
Value
0-100 km/h (0-62 mph)
9.5 seconds
Top Speed
137 km/h (85 mph)
Power Output
111 hp / 82 kW
Torque
199 Nm (147 lb-ft)
Fiat 500e 3+1 Range and Battery Specifications
The Fiat 500e 3+1 24 kWh battery provides 180 km (112 miles) of WLTP range, making it suitable for short commutes and city driving. The 24 kWh usable capacity represents the entry-level battery option, prioritizing affordability over extended range. Real-world range varies based on driving conditions, weather, and driving style, with urban driving typically delivering better efficiency than highway speeds. For drivers with predictable daily routes under 100 km, the Fiat 500e 3+1 24 kWh offers practical daily transportation without range anxiety.
Range Metric
Value
WLTP Range
180 km (112 miles)
Battery Capacity
24 kWh (usable)
Energy Efficiency
~7.5 km/kWh
Suitable For
City commuting, short trips

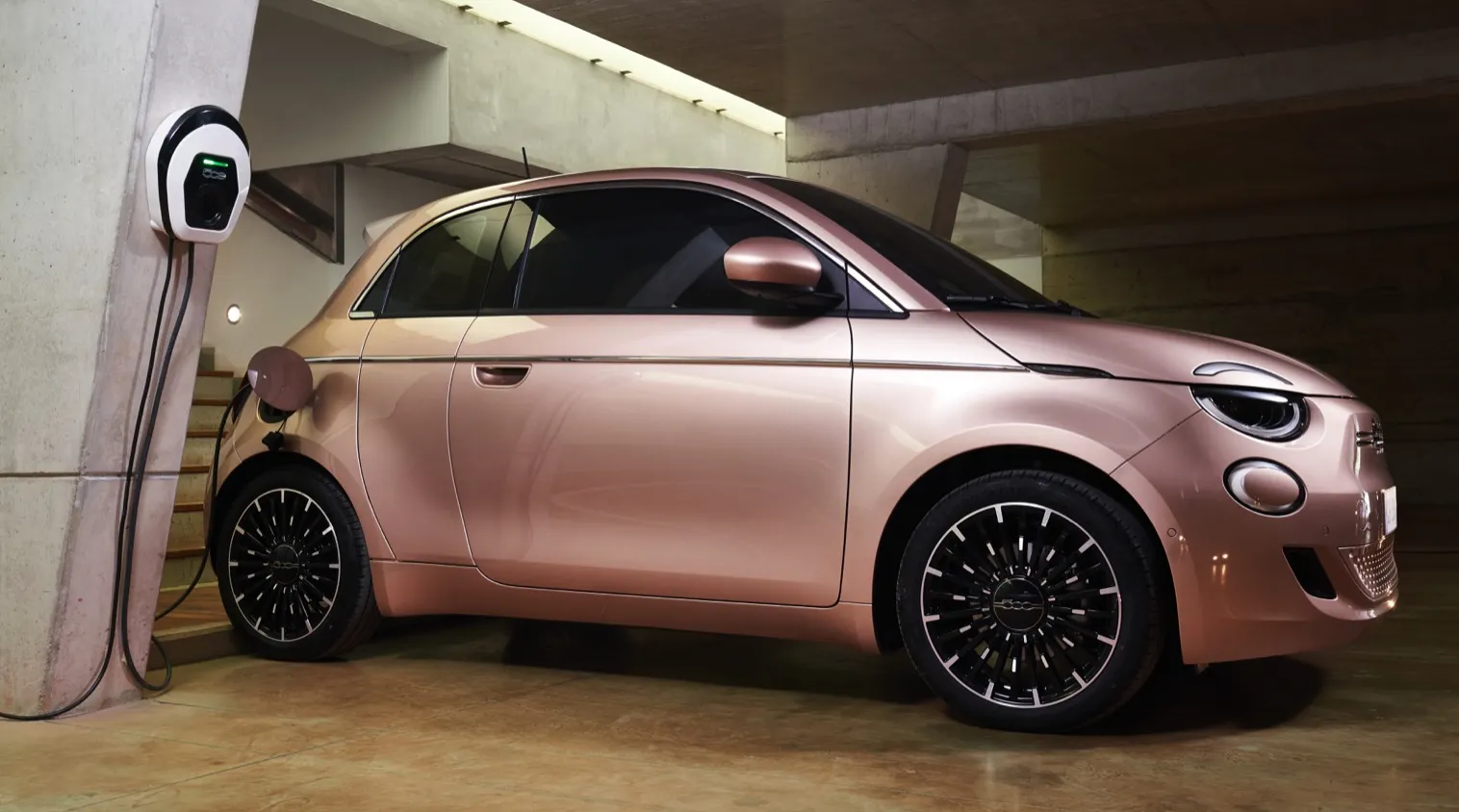

Fiat 500e 3+1 Charging Times and Options
The Fiat 500e 3+1 24 kWh supports DC fast charging up to 50 kW, enabling practical rapid charging for longer journeys. Home charging via a standard 11 kW onboard charger provides convenient overnight replenishment for daily commuters. The Fiat 500e 3+1 reaches 80% charge in just 26 minutes using DC fast charging, making it practical for quick top-ups during shopping or errands.
Charging Method
Time
Speed
Level 1 (120V)
~24 hours
~2 kW
Level 2 (240V/11kW)
~3 hours
11 kW
DC Fast Charge (10-80%)
26 minutes
50 kW
Fiat 500e 3+1 vs Competitors
The Fiat 500e 3+1 competes directly with the Hyundai Ioniq Electric and Volkswagen ID.3 in the affordable city car segment. While the Hyundai Ioniq offers slightly more range and faster charging capabilities, the Fiat 500e 3+1 provides superior design heritage and urban maneuverability. The Volkswagen ID.3 delivers more interior space but commands a higher price point. For budget-conscious urban drivers prioritizing style and affordability, the Fiat 500e 3+1 24 kWh represents compelling value against mainstream competitors.
Frequently Asked Questions
The Fiat 500e 3+1 24 kWh delivers approximately 150-180 km (93-112 miles) in real-world city driving conditions, with range varying based on weather, driving style, and terrain.
Home charging via 11 kW Level 2 takes approximately 3 hours for a full charge, while DC fast charging reaches 80% in 26 minutes.
The Fiat 500e 3+1 24 kWh is optimized for city driving; highway use requires frequent charging stops due to limited range.
The Fiat 500e 3+1 features the distinctive rear-hinged passenger door, providing easier access to rear seats in tight parking spaces.
The Fiat 500e 3+1 offers superior design and urban agility, while the Hyundai Ioniq provides greater range and faster charging speeds.
The Fiat 500e 3+1 24 kWh excels as an affordable, stylish city car for urban commuters with predictable daily routes under 150 km.> The Fiat 500e 3+1 24 kWh delivers affordable electric city driving with 180 km WLTP range, 111 horsepower, and iconic retro design. Perfect for budget-conscious urban commuters seeking practical zero-emission transportation with distinctive Italian styling and nimble handling characteristics.
