Black Tea Motorbikes
Black Tea Motorbikes Bonfire X
Bonfire X
Vehicle Overview
Technical Overview
| Battery & Drivetrain | |
| Drivetrain | |

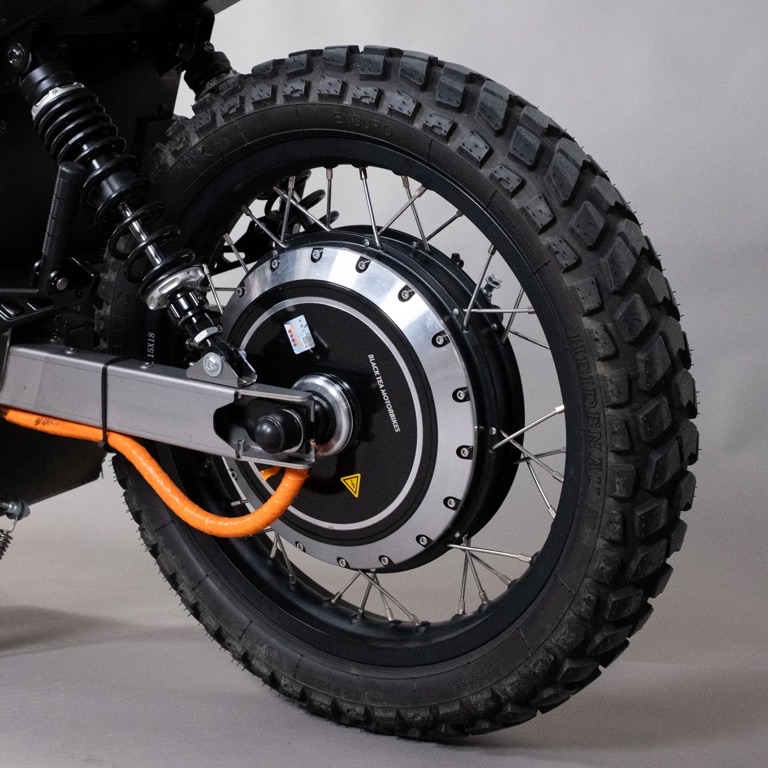

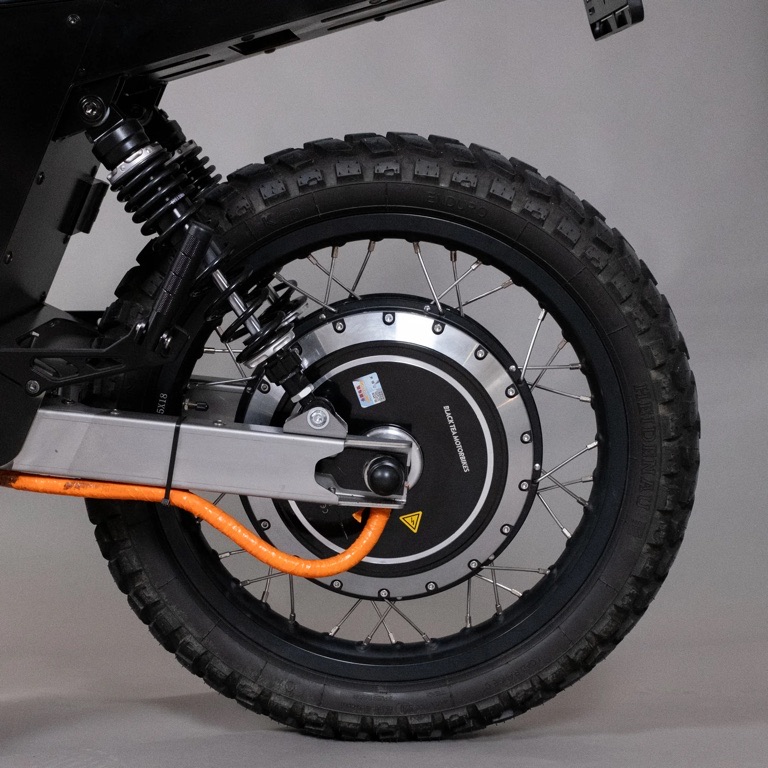

| Type: | PSM Hub Motor |
| Rated Power: | 5 kW (7 hp) |
| Max Power: | 8 kW (11 hp) |
| Torque: | 195 Nm |
| Ride Modes | |
| Speed Mode: | 95 km/h (60 mph) |
| Normal Mode: | 75 km/h (50 mph) |
| Eco Mode: | 55 km/h (35 mph) |
| Charging | |
| Type: | External charger for standard 110 V/220 V outlets |
| 0-80 %: | 3 hours |
| 0-100 %: | 4 hours |
| Range (per battery) | |
| Mixed city riding | 100 km (60 miles) |
| High speed riding | 60 km (40 miles) |
| Battery | |
| Cells: | Premium 18650 Li-Ion cells |
| Voltage: | 104V |
| Capacity: | 35 Ah/ 1.8 kW35 Ah/ 3.6 kW |
| Weight: | 2 x 11,5 kg |
| Features: | Removable, can be charged when installed on the bike or separately |
| Brakes & Suspension | |
| Brakes | |
| Type (Front): | CBS three pistons calipers |
| Type (Rear): | Two pistons calipers |
| Feature: | Hand lever Style |
| Disc (Front): | 265 mm diameter, 3.2 mm thickness |
| Disc (Rear): | 180 mm diameter, 3.2 mm thickness |
| Regenerative Braking | |
|
10 % Energy Recuperation. As you release the throttle you feel the bike slowing down.
|
|
| Front Suspension | |
| Type: |
Hydraulic forks featuring 31mm tubes for extra rigidity and strength.
|
| Travel: | 200mm |
| Rear Suspension | |
| Type: | Adjustable 335mm dual shocks |
| Travel: | 80mm |
| Display | |
|
Dashboard with battery SoC, voltage, speedometer, odometer, trip meter, ride mode, time, and tell-tales.
|
|
| Body & Legal | |
| Wheels | |
| Front Hub: | Aluminium with 12 mm axle |
| Rear Hub: | Hub Motor |
| Front Rim: | 18” x 1.85” 36 spoked aluminum rims |
| Rear Rim: | 18” x 2.15” 36 spoked aluminum rims |
| Front Tire: | 90/90 – 18 Heidenau K60 or K36 |
| Rear Tire: | 110/80 – 18 Heidenau K60 or K36 |
| Body | |
|
Frame, Swing Arm, Box, Side Panels & Fenders are made out of high-quality steel
|
|
| Frame: | Steel Tube Chassis |
| Dimensions | |
| Weight (dry): | 86 kg |
| Wheel Base: | 1300 mm |
| Seat Height: | 800 mm |
| Ground Clearance: | 240 mm |
| Fork Angle: | 24,5° |
| Regulatory | |
| Classification: | L3e-A1 (EU) / Motor-Driven Cycle (USA) |
| License requirement: | A1 or B196 (EU) / M2 (USA) |
